In case of trouble with analog outputs on back side of scanner (4 pin connector) you can do:

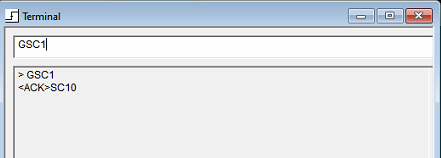

- Use command "GSCn" for check about right calculation "n" stands for output 1, 2 or 3
- Answer would be "SCnd" Parameter for "d" are
- 0: sector calculation off
- 1: minimum of sector
- 2: maximum of sector
- 3: average of sector
- 4: output of internal temperature
- 5: set a fix current in µA
- 6: width measurement
You can use same command also for set to a fixed value for test
- Use command "SCn5 p"
- n: Output 1,2 or3
- p: value in µA (f.e. 4000=4mA, 20000=20mA)
The range for current ouputs are defined with command SZ and SM
- GSZn for check low end of mA Range (typ. 0mA or 4mA)
- GSMn for check max. of mA Range (typ. 20mA
- Answer woud be SZnddd or SMndd (d=040 for 4mA, d=200 for 20mA)
Please don't forget to set back to right sector calculation after test!
