CS400 has a new feature compared to CS210 which allows the user to have an analog output (0-10V / 0-20mA / 4-20mA) of temperatures in Alarm Zones.


To enable the same, please ensure you have WAGOFieldbus Coupler (750-362)  along with Analog Output Modules (750-562 or 750-563)

A-IO-BASICKIT    Basic kit for I/O Modules .

A-IO-2AOC-0    Analog output module 0-20 mA (2 channels)

A-IO-2AOC-4    Analog output module 4-20 mA (2 channels)

A-IO-2AOV    Analog voltage output module 0-10 V (2 channels)

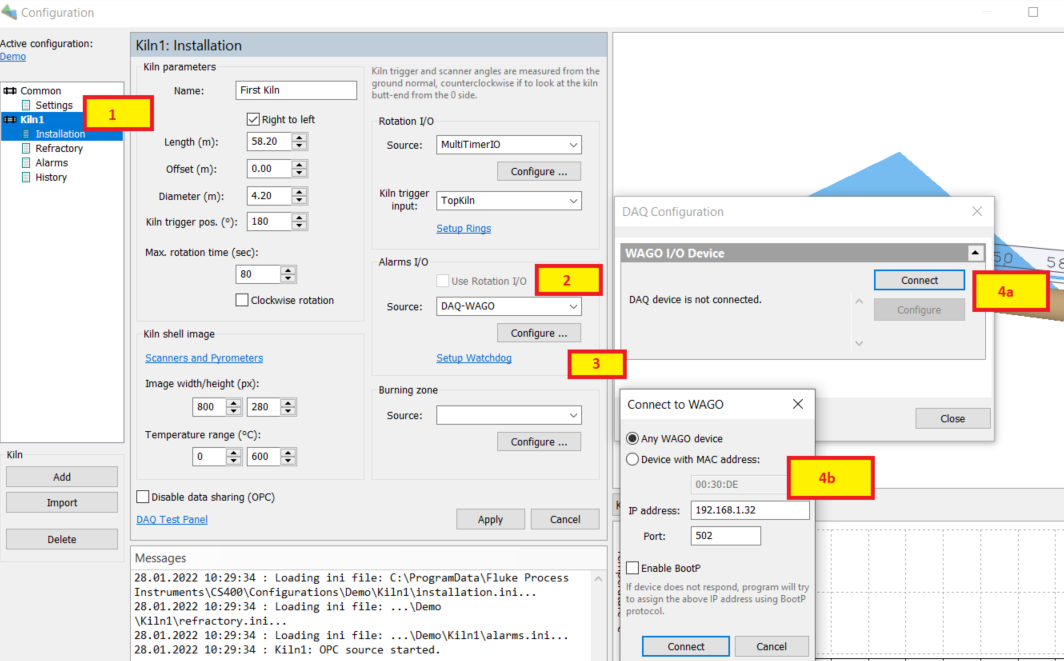

Steps :

  1. Go to Installation Configuration.
  2. Select the source DAQ-WAGO in Alarms I/O
  3. Click on Configure and DAQ Configuration window will pop-up
  4. Click on Connect and select DAQ devices


Once you configure and connect the DAQ with Analog Output Module. Apply the changes and go to "Alarms" in Configuration.

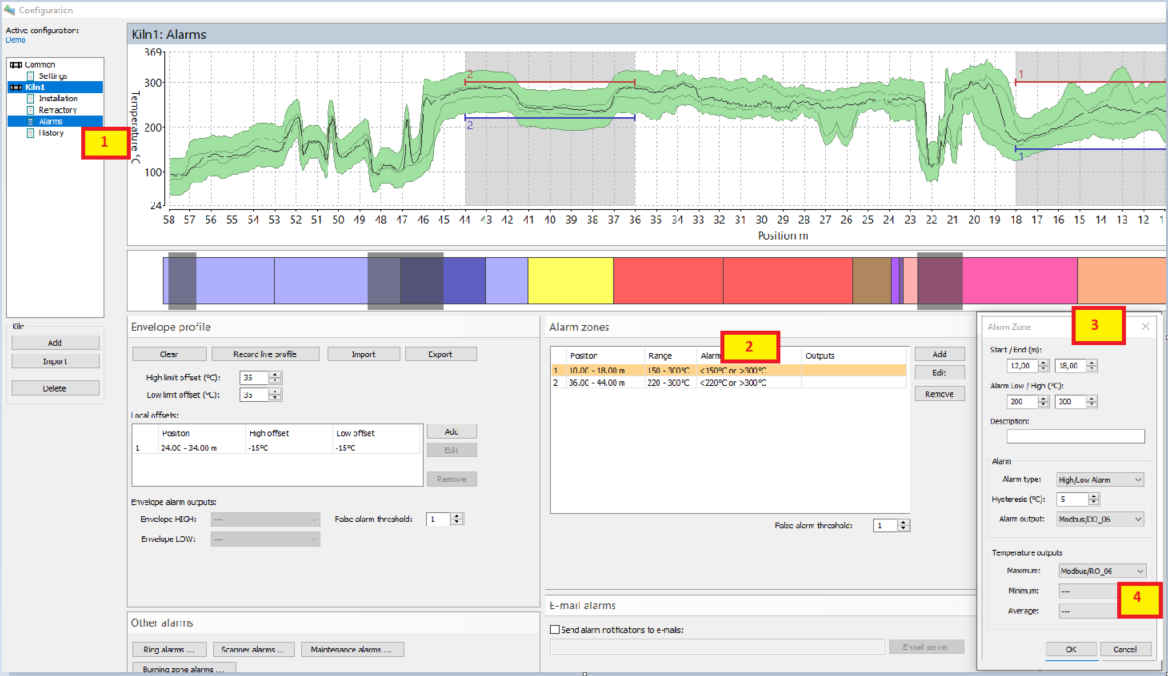

Steps :

  1. Select Alarms in configuration
  2. Select the Alarm Zone and double click on the zone
  3. The alarm Zone window will pop up and at the bottom select the Temperature Output
  4. You can select Max/Avg/Min temperature as per your requirement and assign the Analog Output Channel.
