Endurance - How to set minimum current or under range (EUUU) mA value to 4mA (default is 2.5mA) : Fluke Process Instruments

Endurance - How to set minimum current or under range (EUUU) mA value to 4mA (default is 2.5mA) Print

Modified on: Thu, 5 Oct, 2023 at 5:15 PM

This feature needs firmware v2.02.18 and higher.

This setting ensures that the mA signal, when set to 4-20mA will not drop below 4mA.

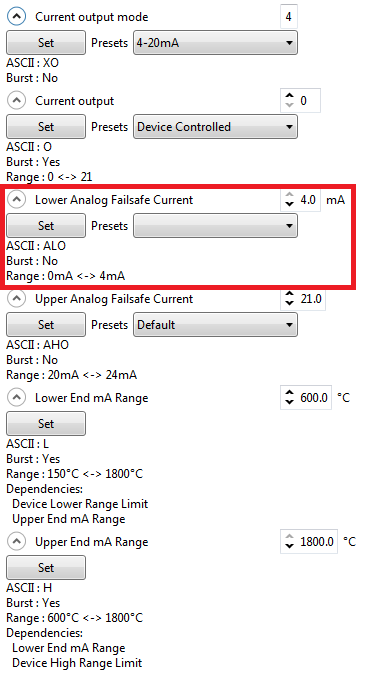

Using the ASCII command ALO (ALO=4), or by using Datatemp Multidrop Software v6 you can set the mA output between 0 and 4mA for the Lower Analog Failsafe current - also when rear LED displays EUUU

Special Note:

For further information on setting the mA output and scaling, please see this article for E1RL Link
