Scope of delivery for A-CS-BZ-EN-KIT-485

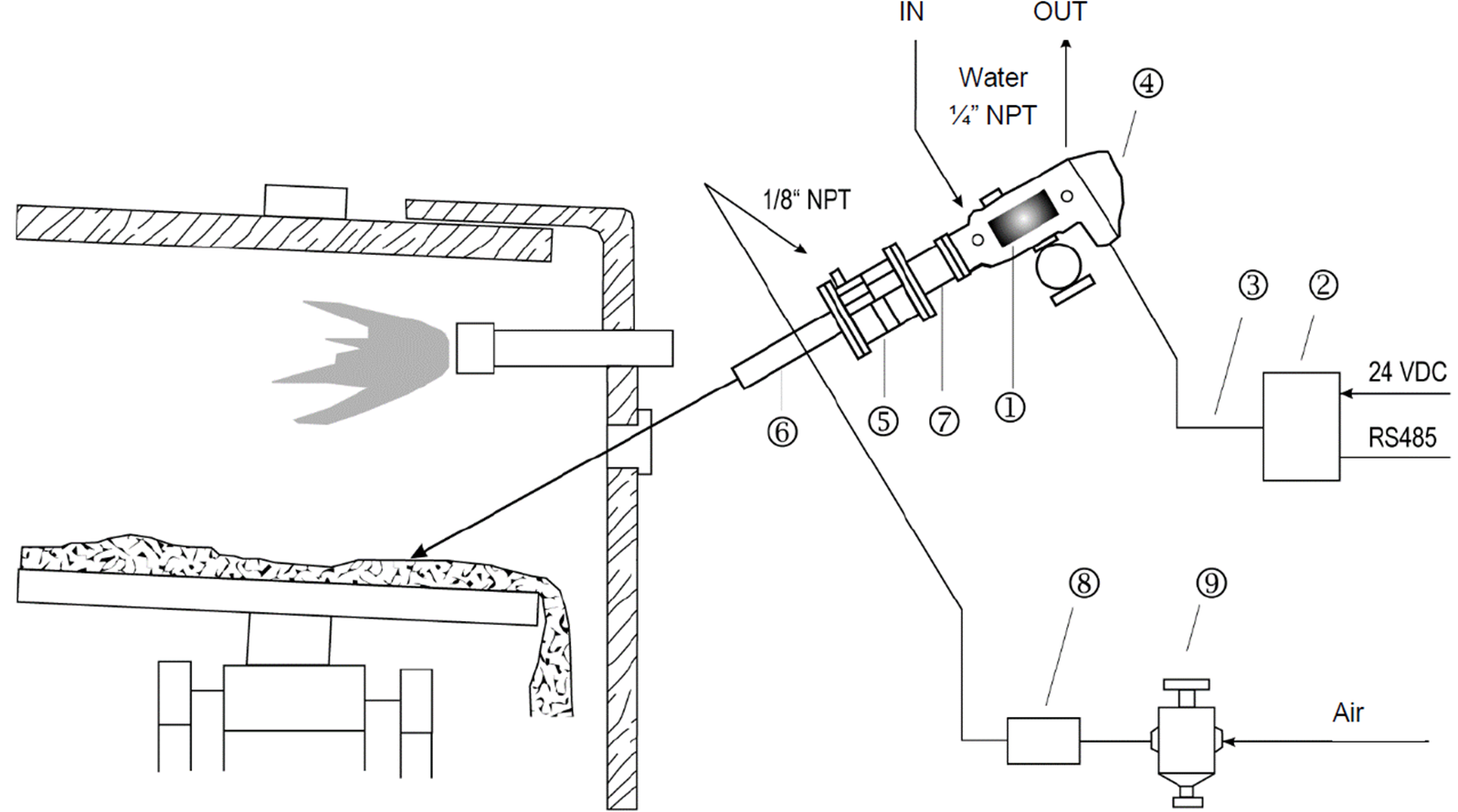

The scope of delivery for the Burning Zone Monitoring accessory:
1. Endurance ratio pyrometer, type: E1RL-F2-V-0-0
2. Endurance connection box
3. High temperature cable, 15 m (49.2 ft)
4. ThermoJacket for Endurance pyrometer, with adjustable mounting bracket
5. Blast gate assembly with quartz window
6. Sighting tube, 30 cm (11.8 in) length, stainless steel
7. Adjustable pipe adapter assembly
8. Air flow regulator
9. Air pressure regulator
