Example for setting the scanner internal sector 1 over the entire 90° FOV


Configuring of alarm relay with 1s hold time



  1. SL1000       set 0 degrees FOV position in sector 1
  2. SR1900       set 90 degrees FOV position in sector 1
  3. SC12           find maximum in sector 1
  4. TB10000    turn off the bottom alarm threshold
  5. TT10150    alarm when result is greater or equal 150°C
  6. TM11         set sector 1 to alarm for a time
  7. TZ10010   time for holding alarm 001,0 sec
  8. PS              writing the commands into the scanner internal EEPROM


Special note: All commands must be in °C

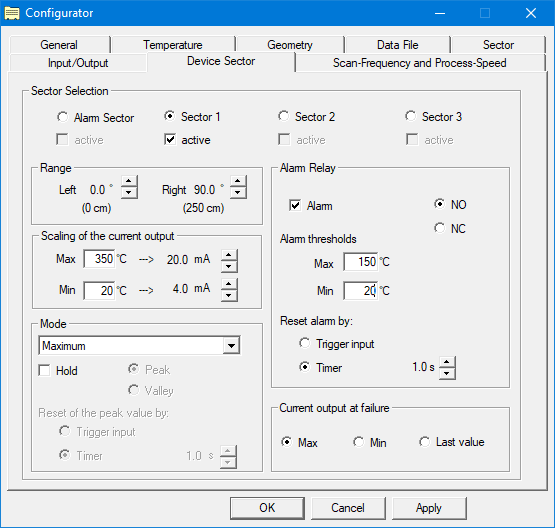

The same settings are made also using the configurator:
