The video sighting capability is an option to display the target area via digital communication on an external computer screen. The video of the internal camera is MJPEG coded and transmitted via an http protocol as a network data stream. Two video formats are supported:
• VGA (640 x 480), aspect ratio = 4:3, frame rate ~ 60 fps
• 720p (1280 x 720), aspect ratio = 16:9, frame rate ~ 30 fps
The driver can be found here Link
The only adjustable parameters for the video gain are:
1. Switch on and off the auto gain function - CGM=
2. Choose a specific colour channel CCM=

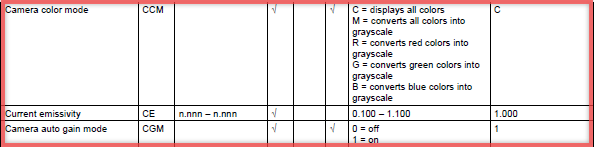

The parameters can be modified using DTMD software or via ASCII commands together with a terminal program:

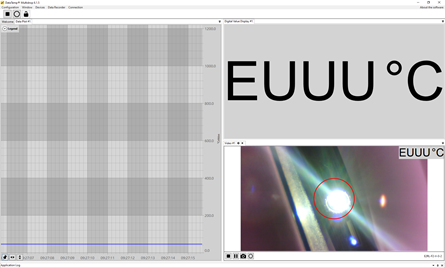

Please note that the center circle as seen in the video view using DTMD is added by the software and not part of the stream:
