Updated June 2023
Please check attached excel file lookup table for values using fixed voltage input scaling and adjustable emissivity and ambient temperature values

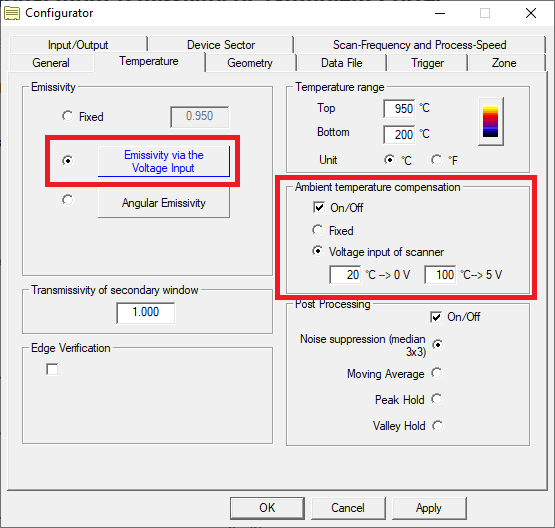

Special Note: The 2 features should be mutually exclusive but are not blocked by the configurator. Take care to only set one feature.
Therefore (until further clarification) one must avoid this highly unlikely scenario:

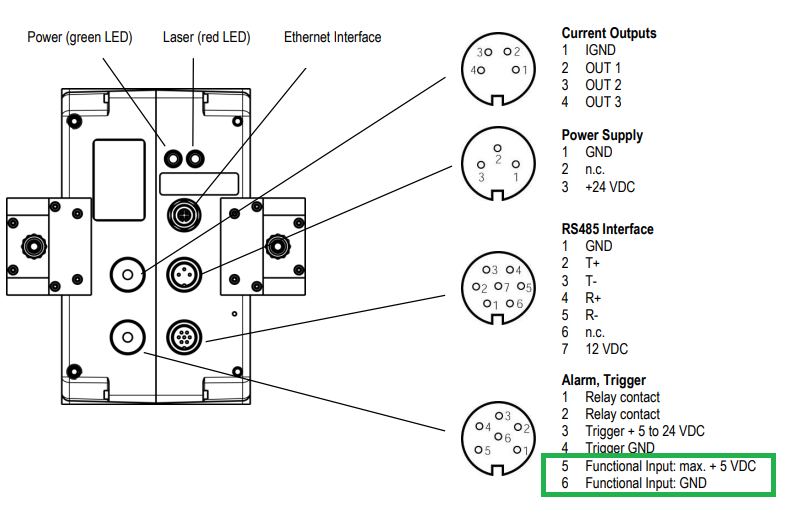

The functional input of the linescanner........

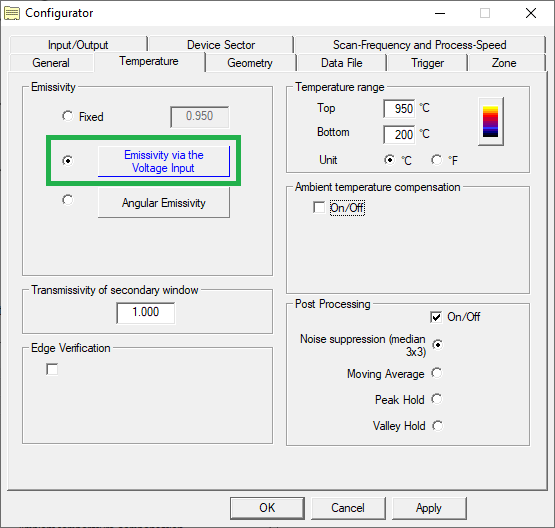

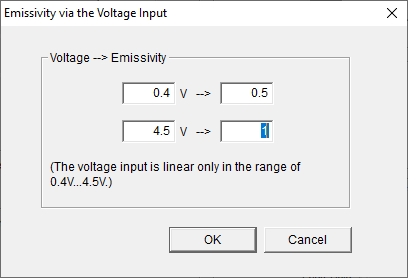

....... can be used for the application of a voltage to set the emissivity value (highlighted blue shows the function is activated):

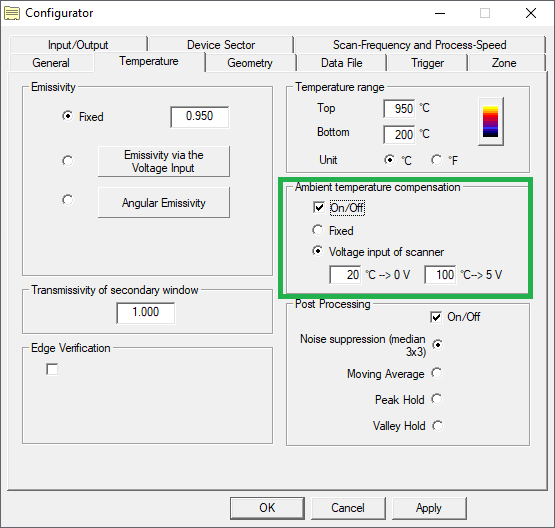

or the "t-ambient" correction function.........
