Background


Incorrect installation of a line scanner on a glass tempering line can result in:


  • False snapshot triggers from reflections off the glass surface
  • These can be from inside the furnace or from the roof of the factory
  • This negative effect is maximized with low emissivity (coated) glass


Solution

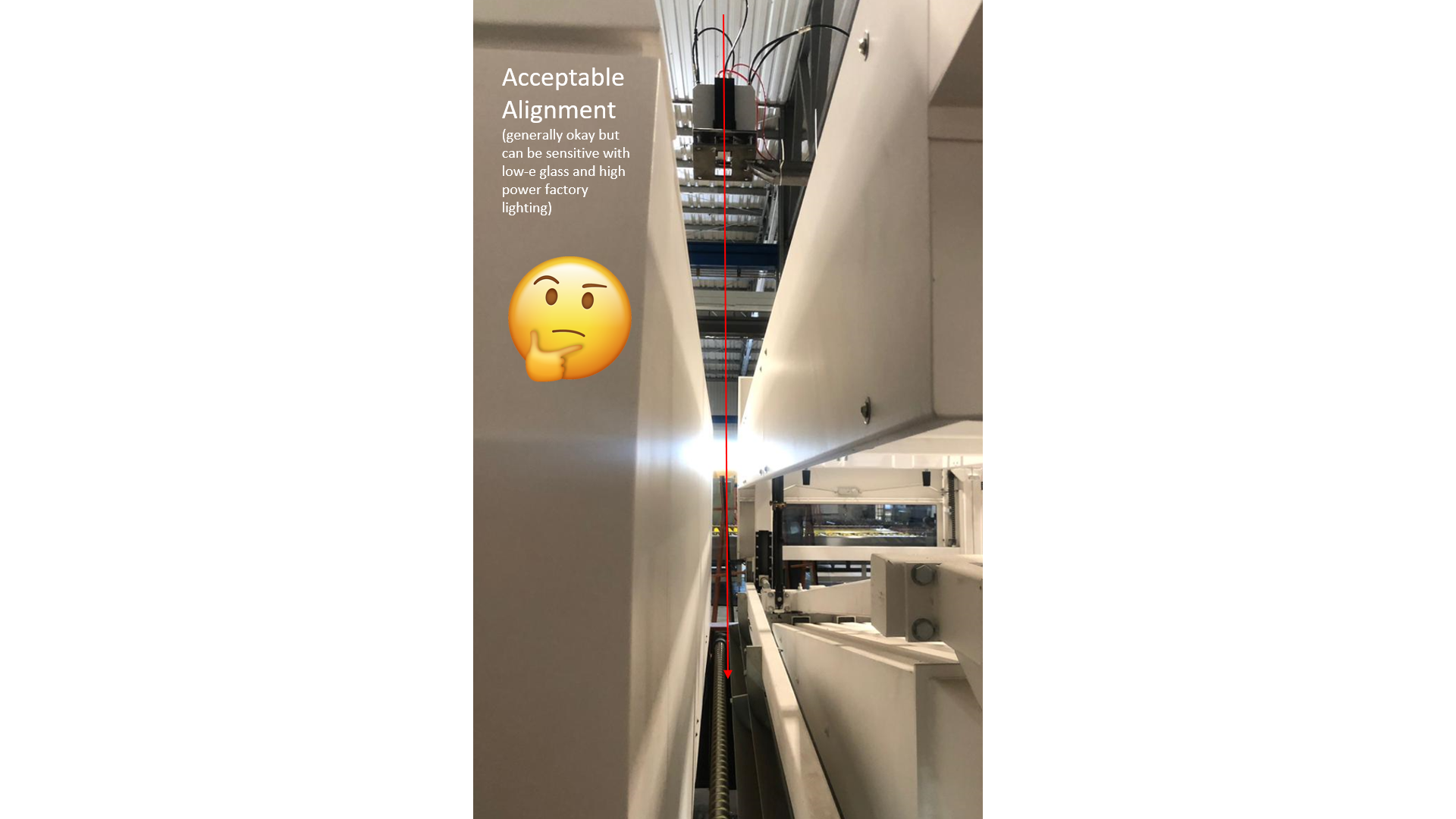

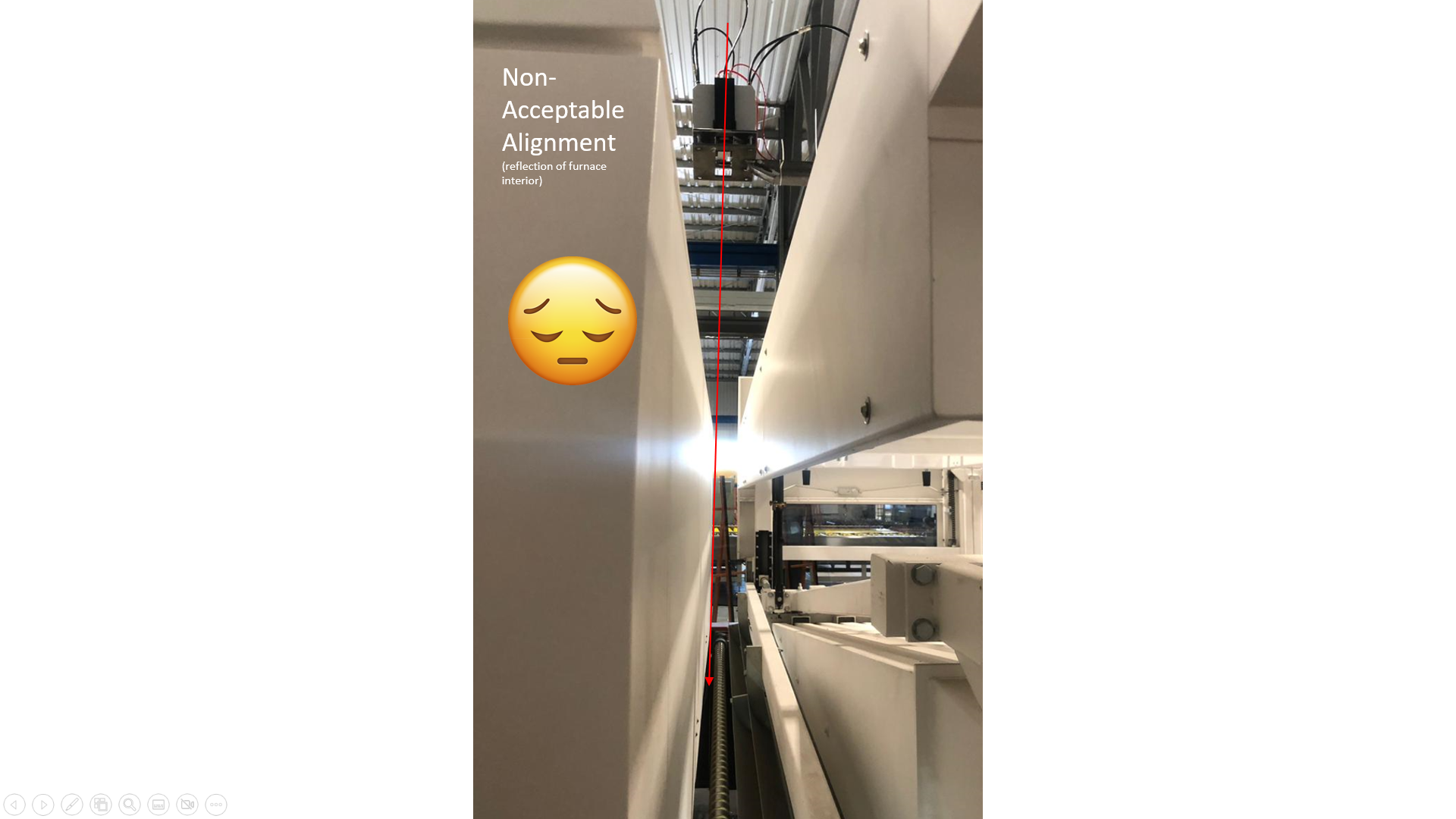

Please consider the following images to show 3 installation cases we have seen in the field (click on image to enlarge)
