For the wiring of the Wago Kit, we need an SMPS (24VDC Power Supply).
The SMPS needs to be connected to Supply Module 750-602 (+24V to Terminal "6" and 0 V to Terminal "7").
The Terminal "2" 24VDC of the Supply Module (750-602) needs to be connected to 24V of the Fieldbus Module (750-362 or 750-352)
The Terminal "3" 0VDC of the Supply Module (750-602) needs to be connected to 0V of the Fieldbus Module (750-362 or 750-352)
Below snip shows the connections for reference :
Inserting wires into the module terminal can be hard but using a proper method could be achieved easily.

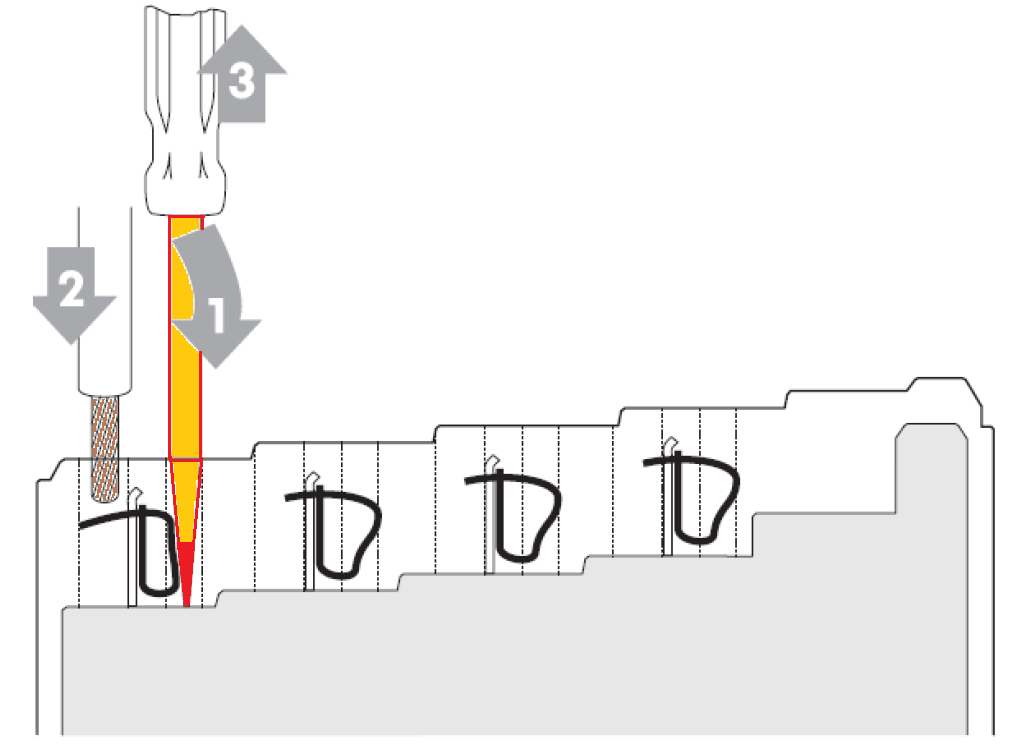

How to connect a conductor (Wire) in the Cage Clamp?
1. To open the CAGE CLAMP® insert the actuating tool into the opening above the connection.
2. Insert the conductor into the corresponding connection opening.
3. To close the CAGE CLAMP® simply remove the tool - the conductor is then clamped firmly in place.
