The Mi3 Intrinsic System (IS) is design to be safely deployed and operated within hazardous environments (ignitable or fire-risk areas).
The following are information and guidelines toward proper location and installation of the Mi3-IS system:

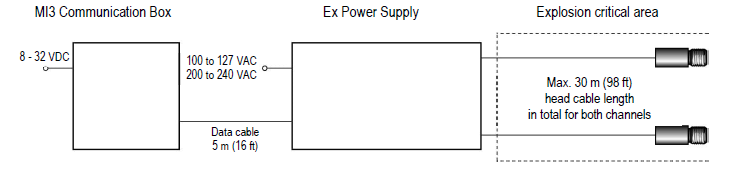

Topography of Mi3-IS system with single Ex Power Supply and maximum of two sensor heads

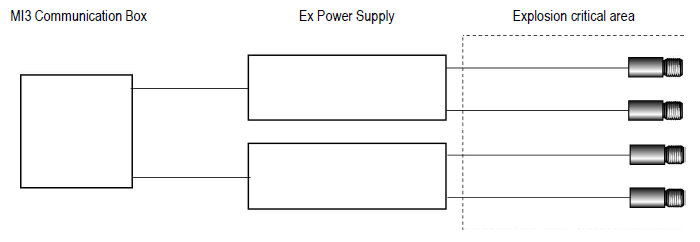

Topography of Mi3-IS system with multiple Ex Power Supplies and multiple sensor heads
In the above multi-head example configuration, the maximum number of components for use with the one Mi3 Comm Box would be four Ex Power Supplies and eight sensor heads.

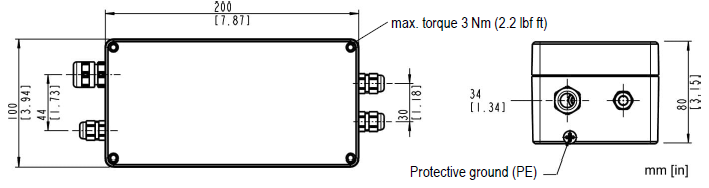

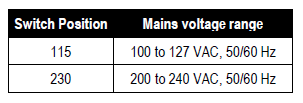

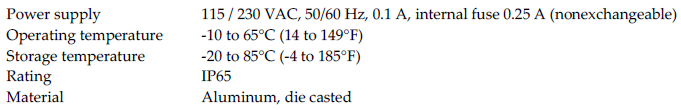

Specifications of the Ex Power Supply for use with the Mi3-IS system:

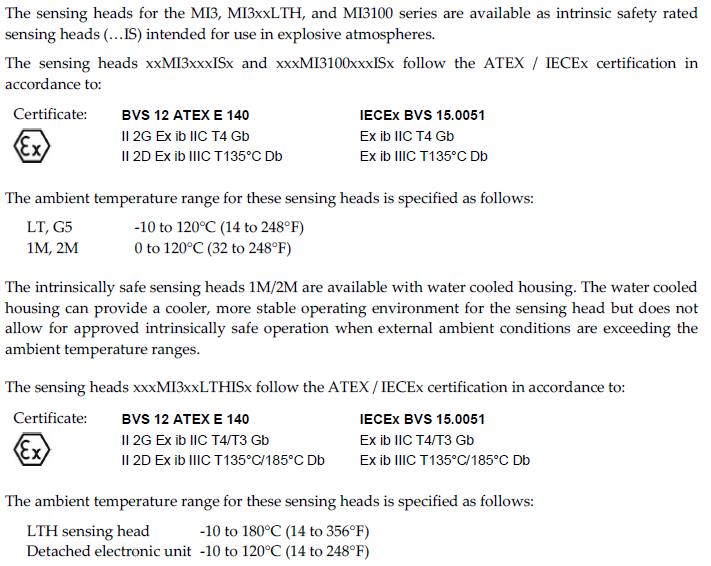

Specifications of the Sensor Heads for use with the Mi3-IS system:

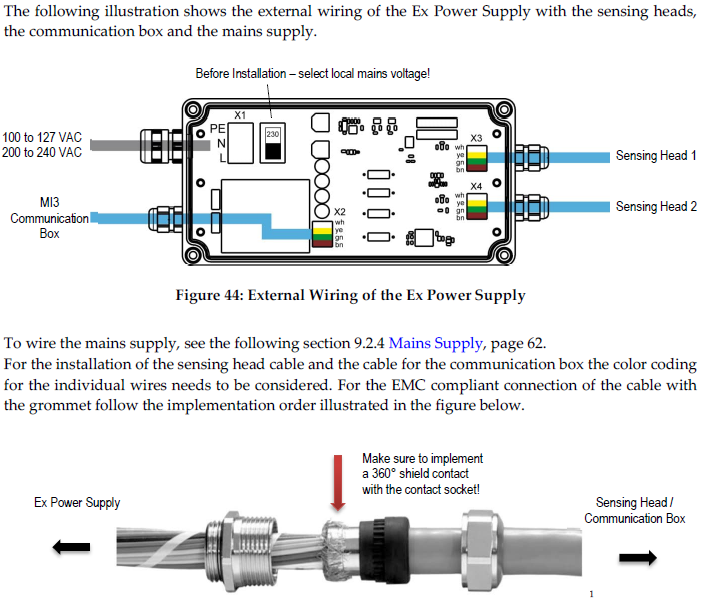

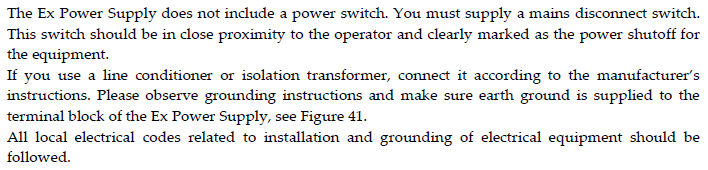

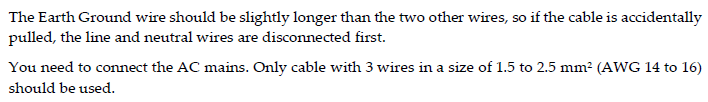

Wiring of the Mi3-IS system:

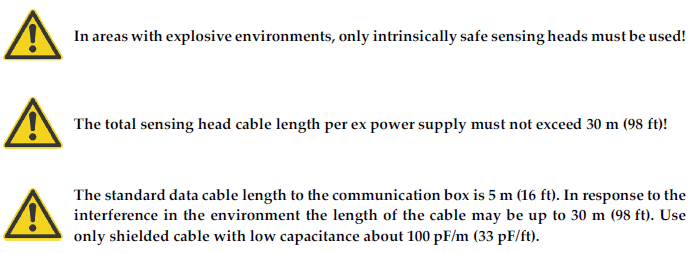

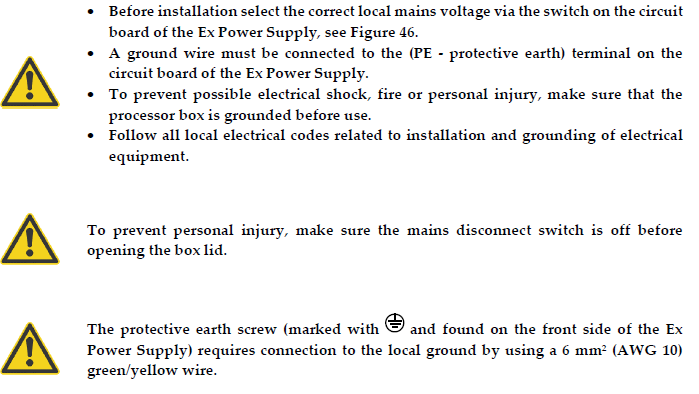

Mi3-IS application and installation warnings:
