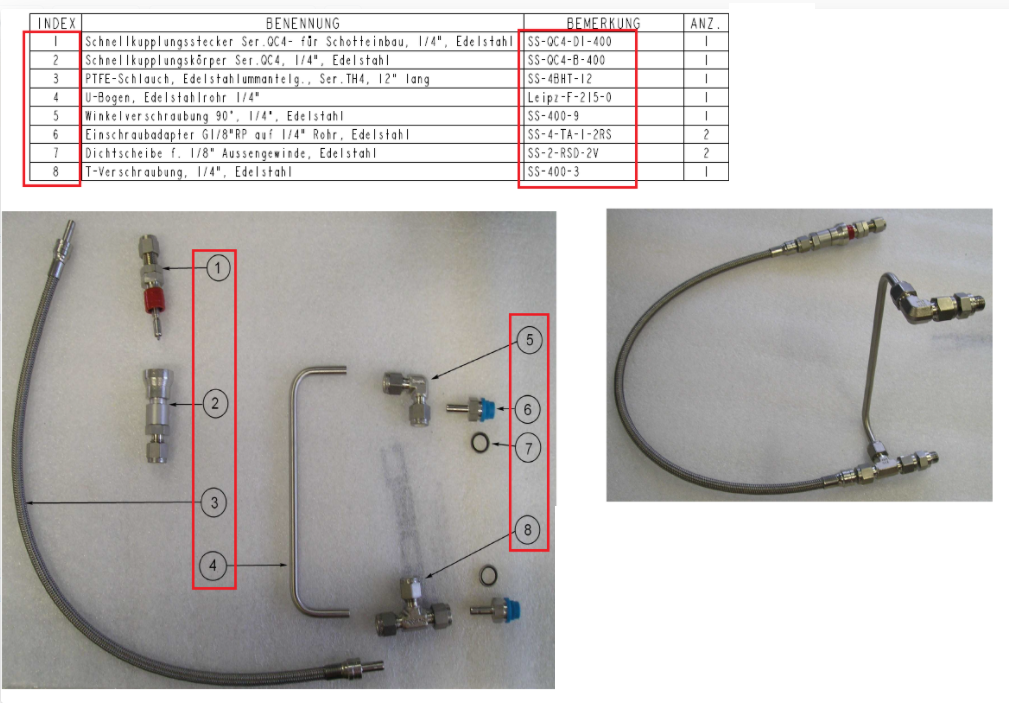

Here are the contents of the water cooling adaptation pipes for installing ScanIR3 into a Scan IR2 housing. Consider it as being only what is required for the inside of the housing and the bulkhead:

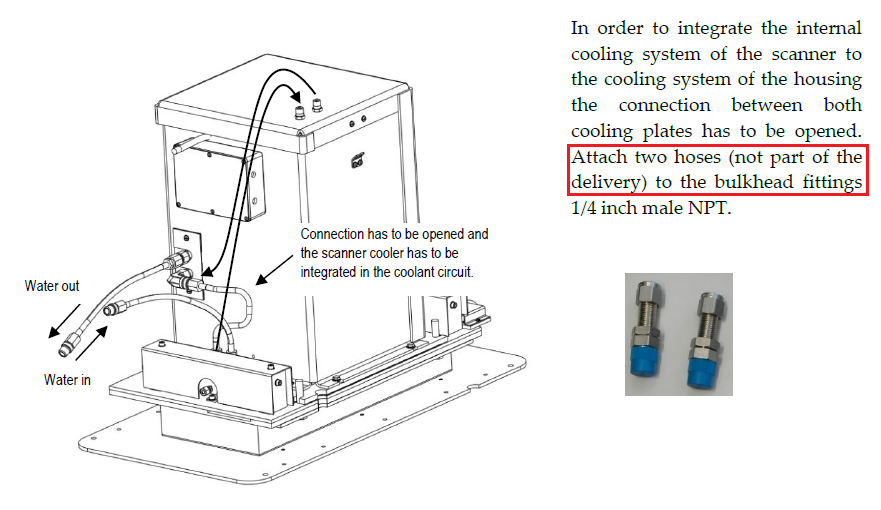

Note: The hoses from the lid bulkhead fittings to break into the cooling loop are not part of the scope of supply.
Note: Air purge connections (in blue) are not part of the this accessory and are also not included in the standard scope of supply. The graphics in the manual wrongly indicate that they are included. We have no specific offering for this part at the current time. These are the components that can be ordered from the come Swagelock:

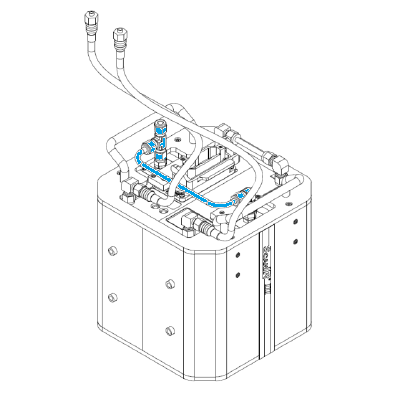

Not Correct (in blue):

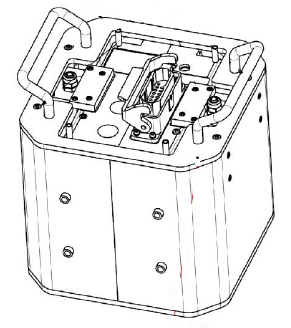

Correct:
