This example is using a 6-wire version:

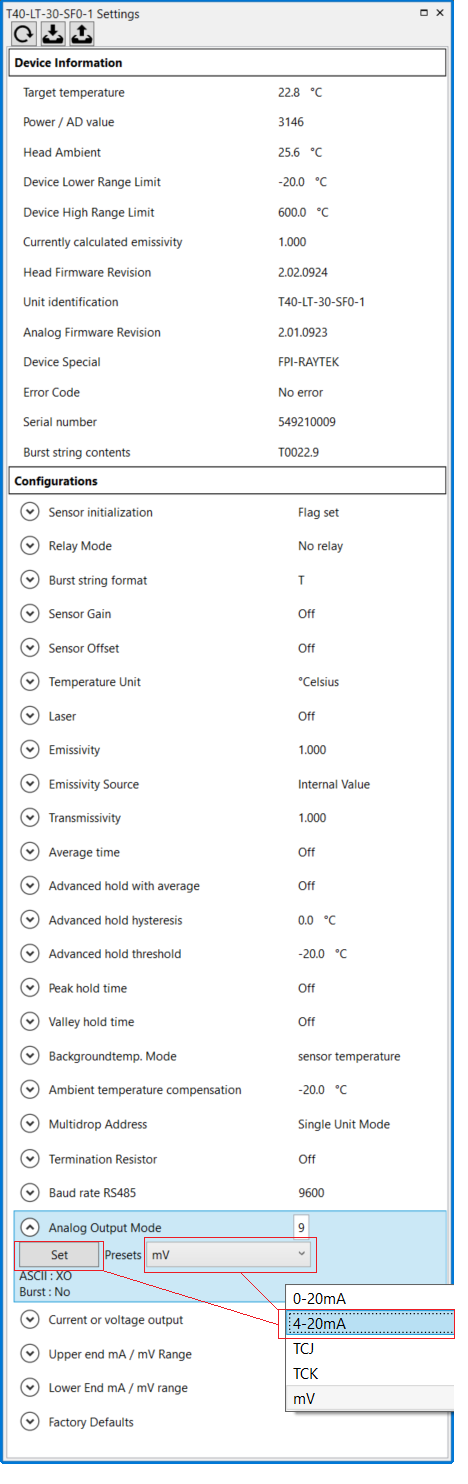

Select desired output via dropdown selector in Analog Output Mode.


Note:

mV and t/c  not available in 2-wire versions

t/c not available in 12-wire version


The following ASCII commands (in bold) can be used via a terminal program:


XO=0 - 0-20mA

XO=4 - 4-20Ma

XO=5 - t/c type J

XO=6 - t/c type K

XO=9 - mV
