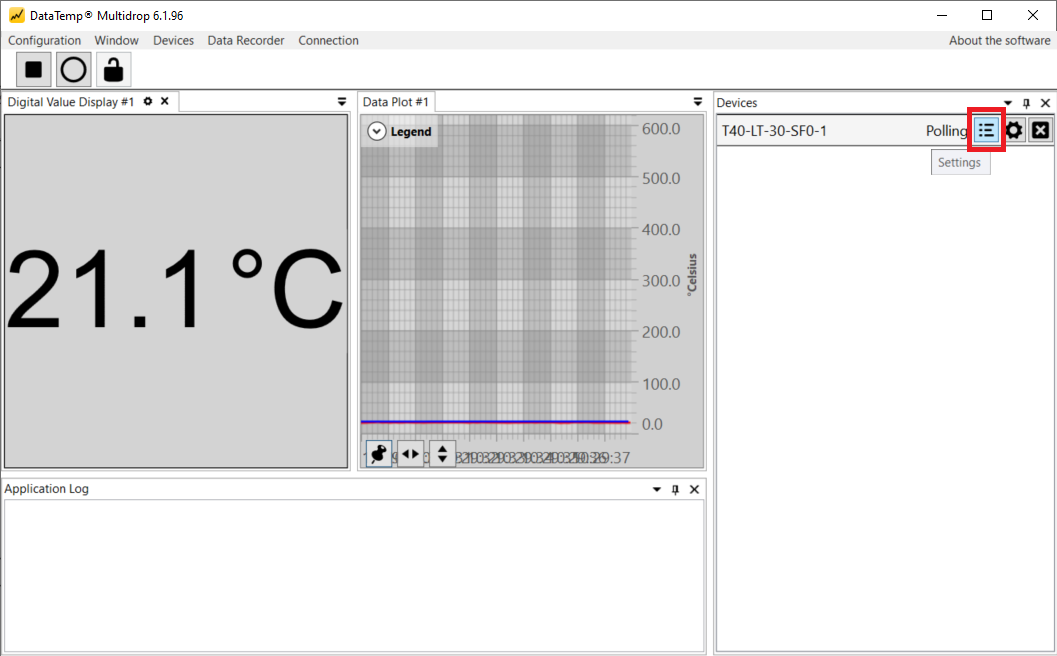

After connecting to the sensor, Click on the setting icon:

Scroll down to the end of list of parameters:

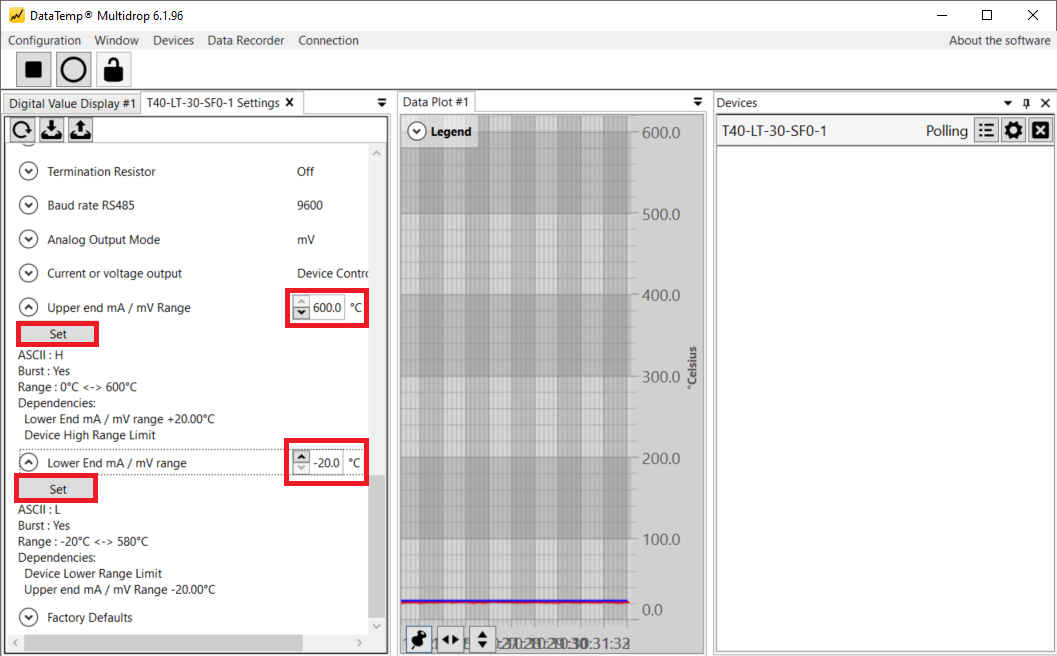

Modify the Upper and Lower end mA/mV range values and Set individually.

In this example, the unit is set to mV output (6 and 12 -wire versions). For the 2-wire version only mA will be displayed in Analog Output Mode.


1. Scaling is not possible with the t/c output (available in 6 wire models)

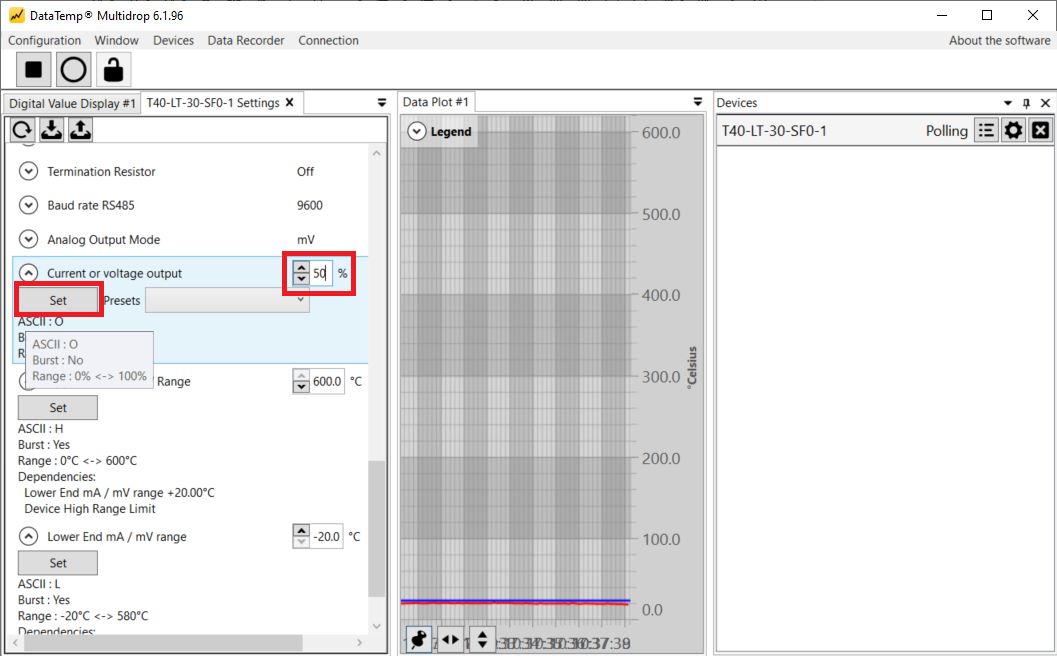

2. You can check the input to your control system by forcing the device to an output based on a % of the output (useful as a mA or mV injector, together with a calibrated DMM):

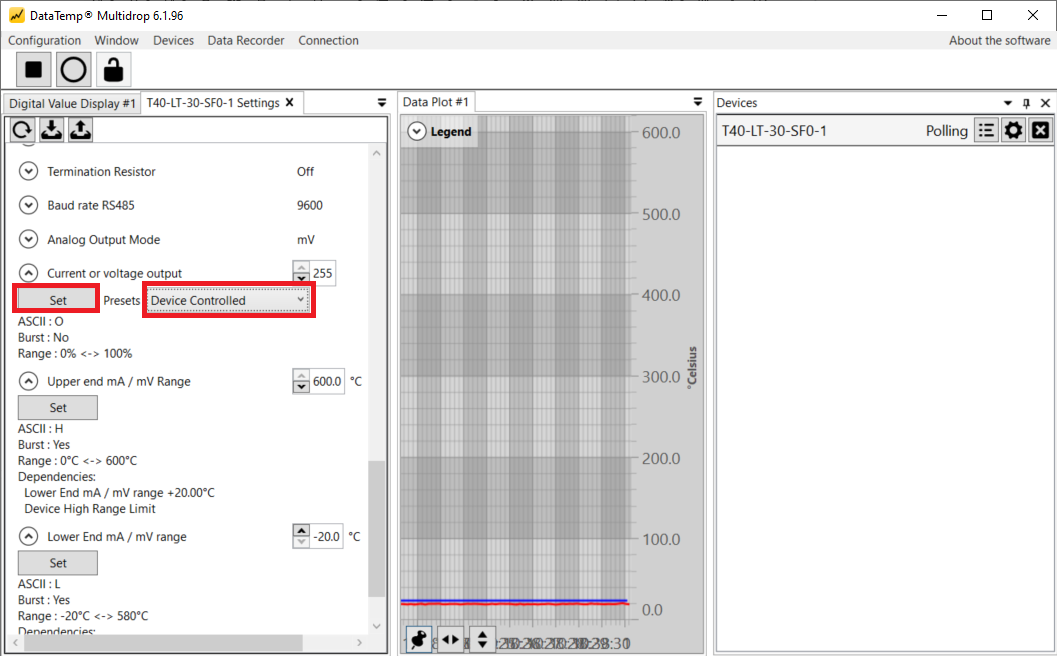

After, set to Device Controlled:
