A-MF-ISO
Mounting Flange with 2 Teflon Insulating O-Rings
This is an isolated flange with PTFE rings for isolation of conducted heat. The flange is secured with the standard nut on the front side - it is not threaded.

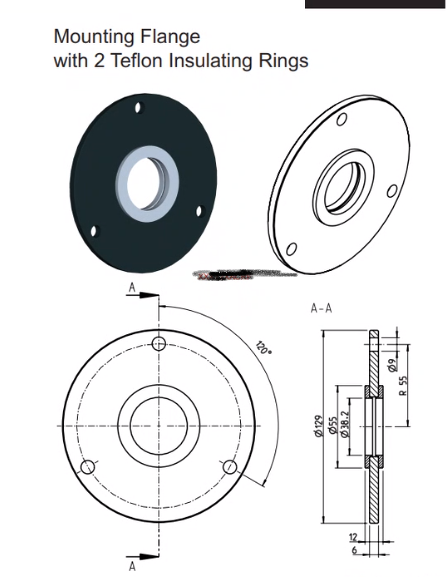

Dimensions :

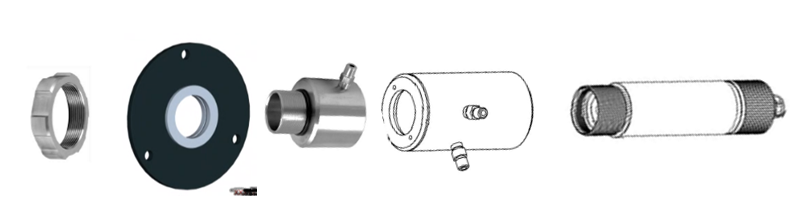

Mounting Scheme :
Mounting and Dimensions of A-MF-ISO Print
