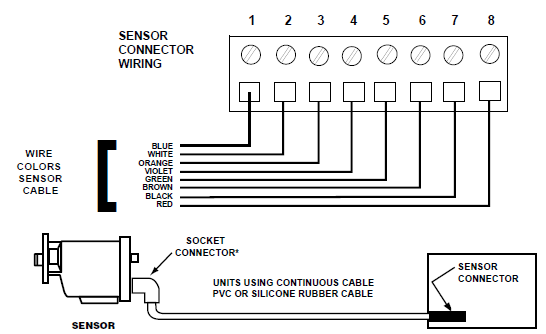

1. Vout
2. Connected to 3
3. Connected to 6
4. RS485 +
5. RS485-
6. PSU GND (further connected to Protective EARTH)
7. -15V
8. +15V
Note: The internal PSU of the Modline 3 controller cannot be used for powering any replacement FPI sensors.
Recommendation:
1. Discard the Modline 3 processor
2. Repurpose only the cable.
3. For very long cable lengths consider using 2 cores each for 24DC or using a 48V supply and a DC-DC converter at the sensor end of the cable.
