This page consolidates extracts from the Modline 5 and Endurance manuals.

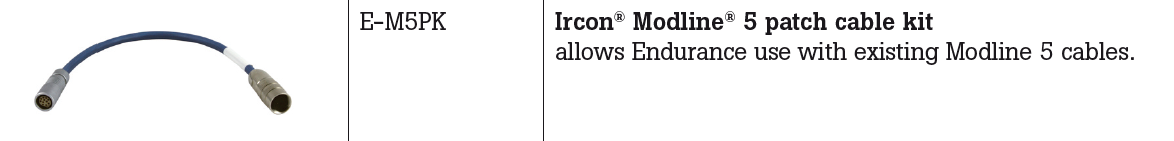

The E-5M5PK is approximately 30cm in length.

There is a discrepancy between the the handling of the Peak Hold reset connection of the Modline 5 (connect directly  to a relay or switch) and the Trigger input of the Endurance (connect relay or switch to Trigger and Ground(power) L.

Please contact for further information if your customer was using peak reset with Modline 5 and needs to use the trigger input of the Endurance to reset the peak hold.

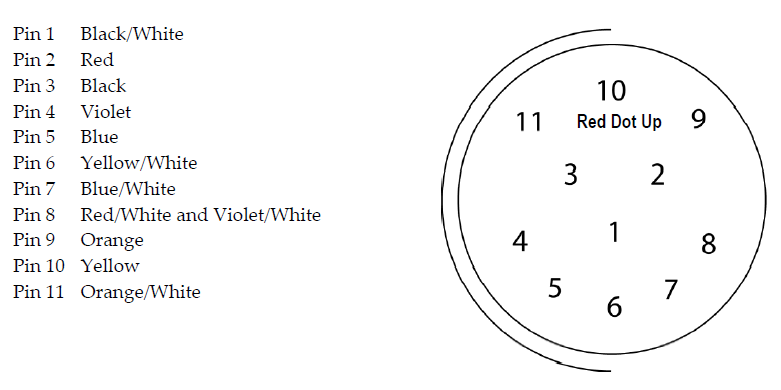

Modline 5 connector:

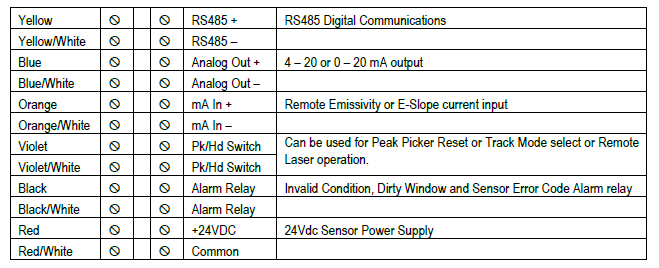

Color coding:

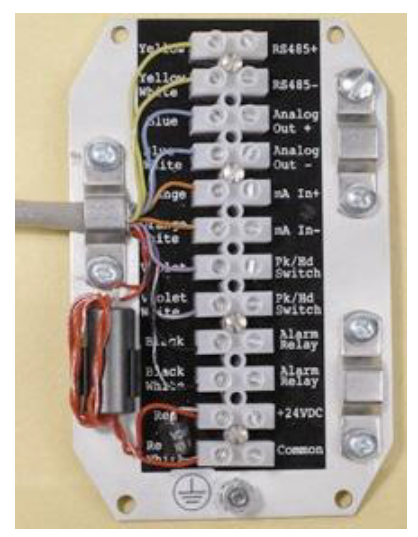

Terminal Strip:

Endurance connector:

Endurance Connection Pin Coding:
