Updated April 24th 2025
19.08.2024
STM: Version 2.02.38 /GD: Version 2.03.13: * 0-20mA output stays 0 after RST (STM only), too short timeout after RST
03.05.2024
STM: Version 2.02.37 /GD: Version 2.03.13: * ratio correction factor for 2R
05.03.2024
STM: Version 2.02.36 /GD: Version 2.03.12: * bug fix in R34, lost of gain values > 500 million; 6-point-cali, default values can be set with %PS
29.06.2023
STM: Version 2.02.35 /GD: Version 2.03.11: *mA output +0.35mA intermittent offset fixed - reset DAC chip on power/cycle
31.01.2023
STM: Version 2.02.34 /GD: Version 2.03.10: * bug with ASC and mA Output fixed (different from mA offset).
* Customer wish to implement holding Temperature during Peakhold within EAAA and ASC=1
17.01.2023
STM: Version 2.02.33 /GD: Version 2.03.09: * added new command "ASC": ASC=1 enable attenuation special treatment;
ASC=0 (default) disable, normal attenuation handling.
* improvement of (Peakhold-) timing during EAAA
06.01.2023
Version 2.03.08: * Video stream issues fixed
06.12.2022
STM: Version 2.02.32 /GD: Version 2.03.07: * add new command "ICAL": set P(1-6) ,Ty (measured Temp 1),Tx (target Temp 1),Ty (measured Temp 2),Tx (target Temp 2) ….
set up to 6 calibration points (ICAL=n T11 T12 T21 T22 ...T61 T62), ?ICAL
* add new command "SIC=1/0" enable (1) 6-point calibration or standard measurement (disable, 0).
14.11.2022
Version 2.03.06: * Video freeze issue fixed.
*********Special Note**********
DTMD version 6.1.99 is mandatory to perform the update. You may initially have an error message that the update was not successful. If this happens, please try again after power cycling the sensor.
Background on mA offset issue
A small number of sensors can have an intermittent effect where the mA output is 0.35mA higher than the calculated temperature to mA value.
This intermittent positive offset can equate to error for the a standard E1RL - +26.3K at any point in the temperature range.

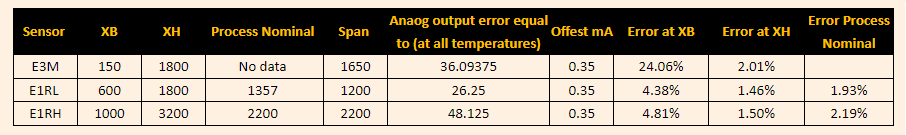

Further examples below:
The problem is very often cleared by re initializing the sensor. However, the issue can return after an unpredictable number or power cycles or re initializations.
From an application perspective, the issue may never be detected (hidden inside an acceptable margin of error) or experienced in terms of process set-point instability.
It is typically detected when the PLC or indicator value is witnessed to differ from the temperature display on the LED panel on the sensor or displayed via software.
Not all units are affected.
