CS400 - Spare Parts List
Print
Modified on: Fri, 30 May, 2025 at 3:46 PM
| Item | Part Number |

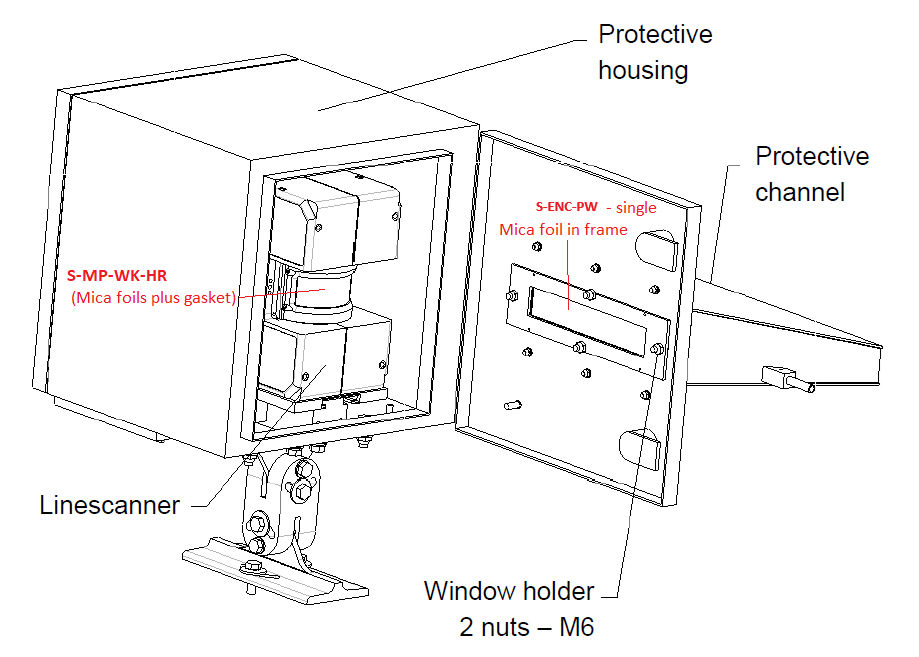

| Line scanner | RAYTMP150HRR1 |
| TSM/LRM Controller | XXXTCSLRMMCONNBOX |
| Stainless Steel Housing Window | S-ENC-PW |
| Line scanner window | S-MP-WK-HR |
| Serial Server | A-CS-CONV-ETH485 |
| Proximity Switch (Kiln and LRM) | S-CS-PI |
| Alarm Module - Coupler | A-IO-BASICKIT |
| Alarm Module - 16 digital | A-IO-16DO |
| Alarm Module - 2 relay | A-IO-2R-NO |
| 1 x Shadow Monitoring Complete Kit | A-CS-SM-KIT-485 |
| 1 x Spare head with 8m cable | RAYMI310LTHCB8 |
| Cabinet Heater | A-CS-CAB-HEAT |
