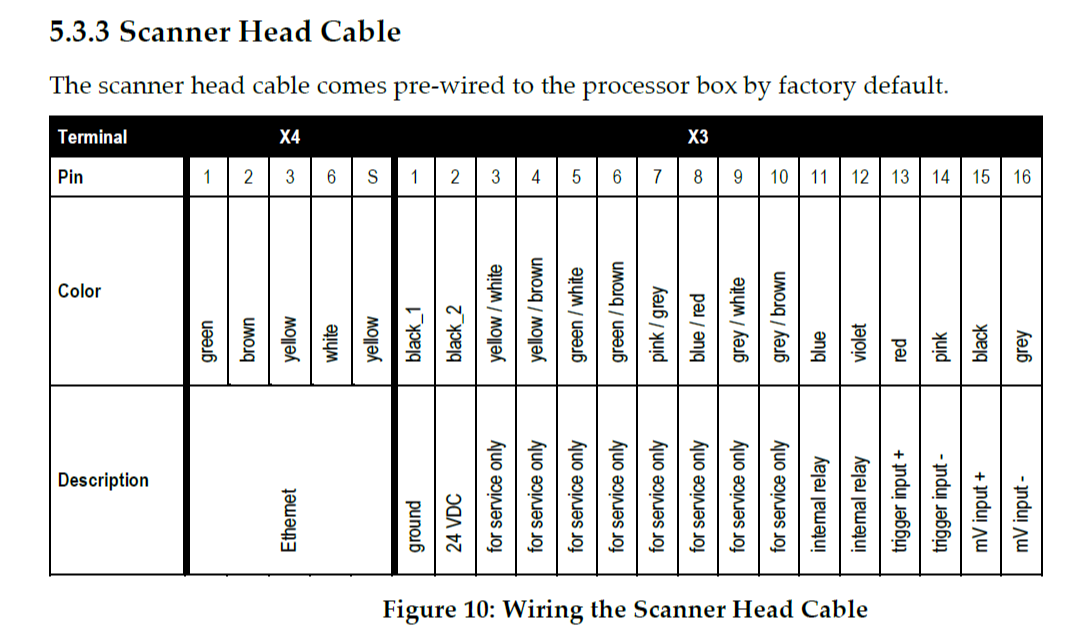

1. Klemmleistenseite Details:
2. Belegung Steckerseite Details:
| Pin-Out | Wire Color | Description |
| A1 | Black with Number-1 | Ground |
| A2 | Black with Number-2 | 24 VDC |
| A3 | Red | Trigger Input + |
| A4 | Pink | Trigger Input - |
| A5 | Yellow and White | For Service Only |
| A6 | Yellow and Brown | For Service Only |
| A7 | White | Ethernet 6 |
| A8 | Yellow | Ethernet 3 |
| A9 | Green | Ethernet 1 |
| B2 | Blue | Internal Relay |
| B3 | Violet | Internal Relay |
| B4 | Green and White | For Service Only |
| B5 | Green and Brown | For Service Only |
| B6 | Pink and Grey | For Service Only |
| B7 | Blue and Red | For Service Only |
| B8 | Brown | Ethernet 2 |
| C1 | Not Used | Not Used |
| C2 | Not Used | Not Used |
| C3 | Black | mV Input + |
| C4 | Grey | mV Input - |
| C5 | Not Used | Not Used |
| C6 | Not Used | Not Used |
| C7 | White and Grey | For Service Only |
| C8 | Brown and Grey | For Service Only |
| C9 | Not Used | Not Used |
