Accessories (Obsolete)

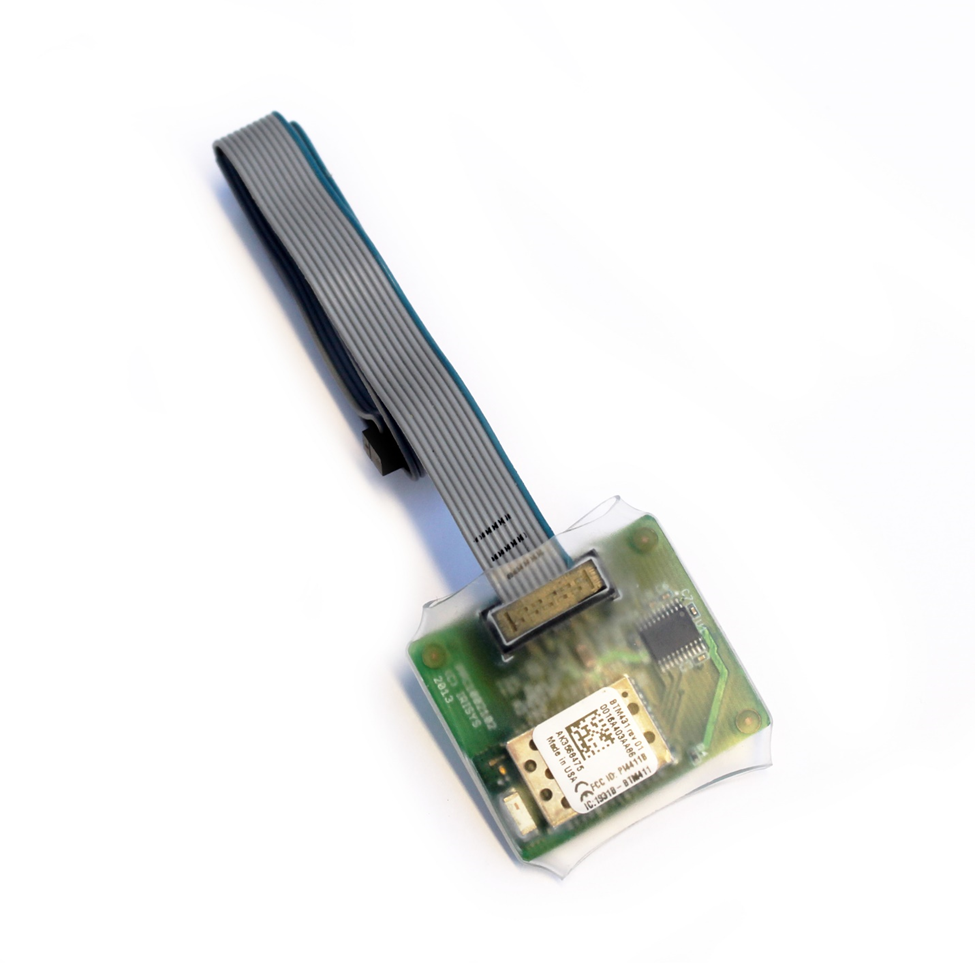

IWC3095 Bluetooth Setup Module
Before use, the Irisys People Counters must be configured to work in their installed location. Set-up instructions and guidance are discussed in the relevant Irisys document Setup Software Manuals.
Connection to the counter for setup purposes is provided via local serial connection or, in the case of IP enabled units, via IP; either locally, or remotely across the internet.
Documentation:
Bluetooth Setup Module User Guide

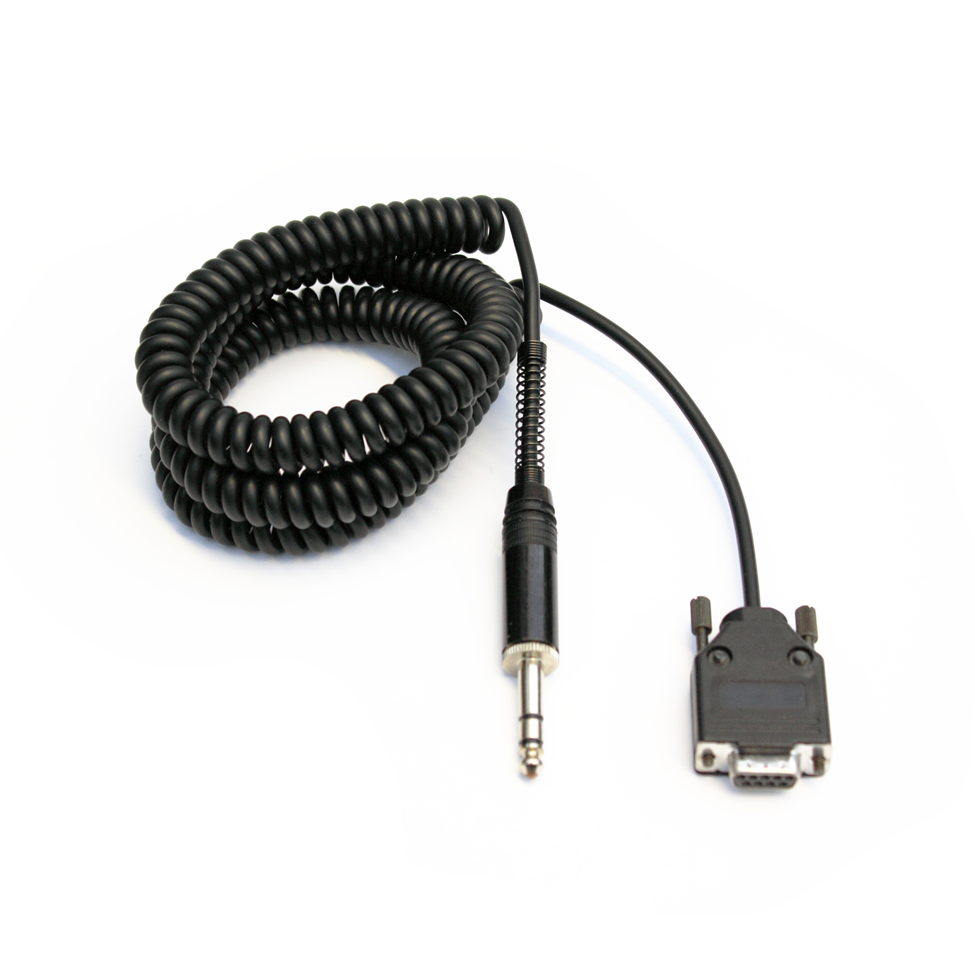

IWC2031Setup Cable For Outdoor Counters
The IWC 2031 Setup Cable provides an RS232 Serial Connection, for configuration purposes, to the Irisys 31xx Counters.
The IWC2031 cable cannot be used to configure the Relay enabled Counters in the 3xxx Series range of Irisys People Counters. For IP enabled Units in the 31xx range of Outdoor Counters, setup can be either done via IP and an Internet Browser or over a Serial connection as provided by this cable.
Documentation:
Outdoor People Counter Set-Up cable connections

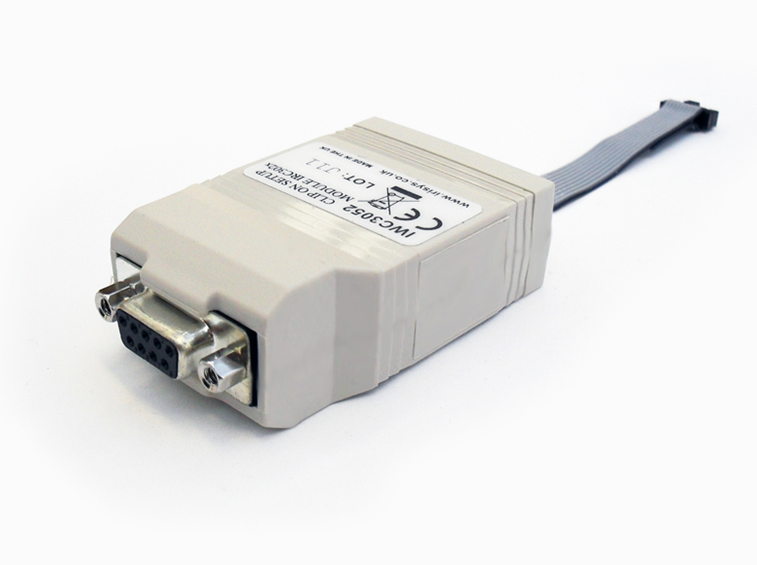

IWC3052 RS232/USB Setup Module
The IWC 3052 Setup Module provides an RS232 Serial Connection, for configuration purposes, to the Irisys 3xxx Series Relay enabled Counters.
The IWC3052 Module cannot be used to configure the IP enabled Counters in the 3xxx Series range of Irisys People Counters. For Relay enabled Units in the 3xxx range of Counters, setup over Serial connection is the only method of configuration available, and this module must be used.
Documentation:
Software:

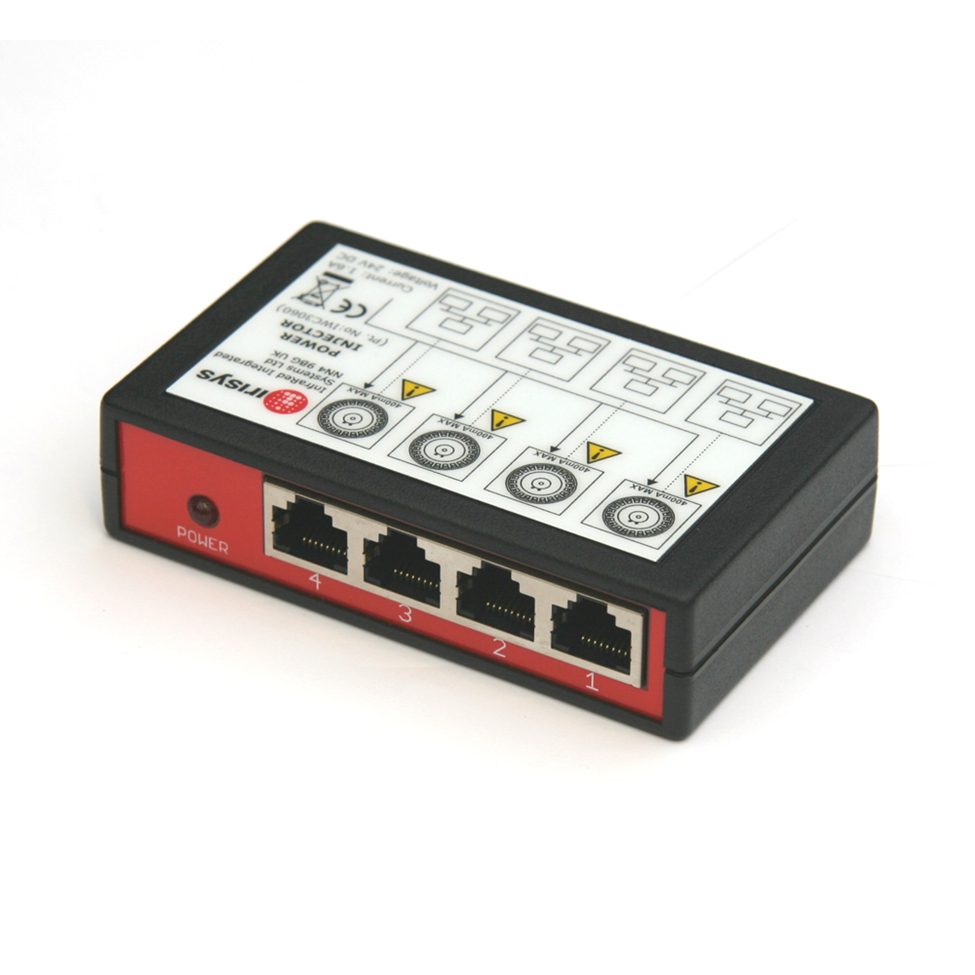

IWC3060 4-Port Power Injector Module
The IWC3060 4-Port Power Injector Module, for IP Master Counters, allows for simple deployment of power over Cat5 on up to four channels (four separate doors) in order to provide power to the IP enabled counters in the Irisys 3xxx Series range.
The IWC3060 allows a simple single Cat5 installation from the door/entrance back to the Network Hub or Switch without the need for an additional power cable.
Note: This is not a Power over Ethernet (PoE) compliant device
Documentation:
IWC306124V Power Supply
The IWC3061 24V Power Supply is for use with the IWC3060 4-Port Power Injector.

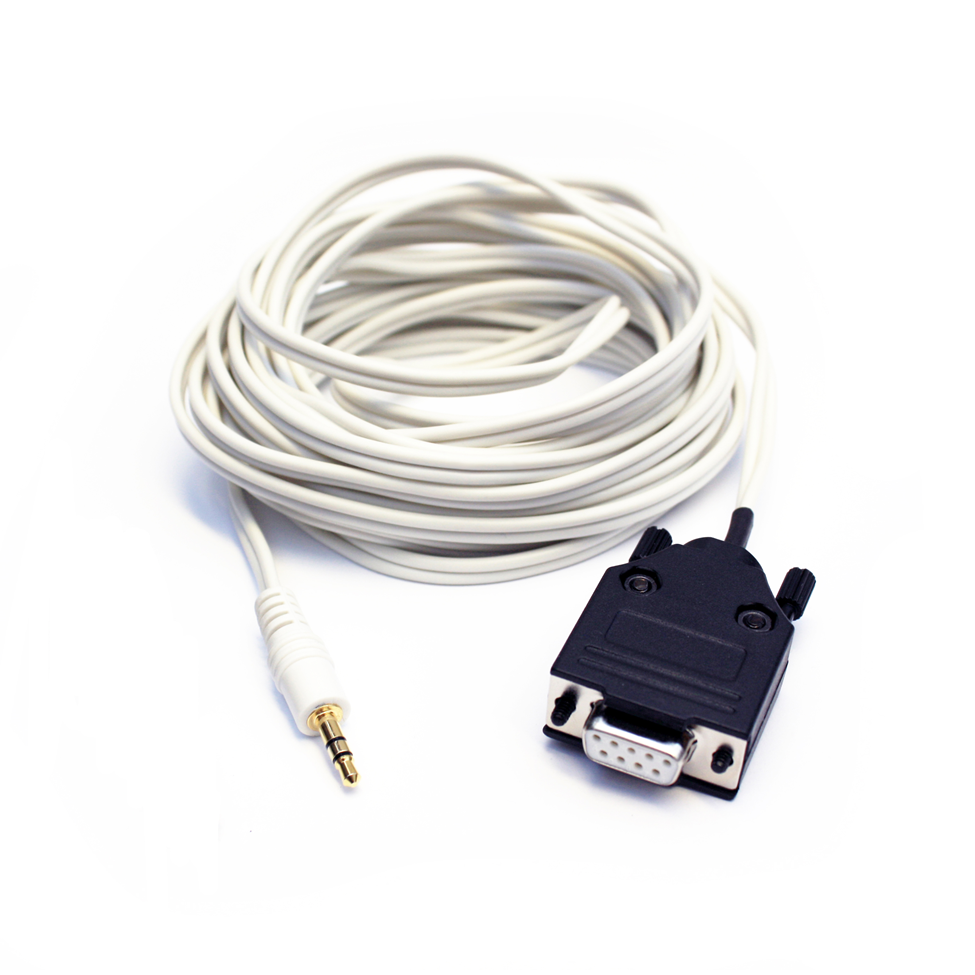

IWC3062 RS232/USB Setup Cable
The IWC3062 Setup Cable provides an RS232 Serial Connection, for configuration purposes, to all current Irisys Gazelle series Indoor people counters and current 3xxx series outdoor counters, as well as the older 3xxx Series IP enabled Indoor Counters.
This cable is required for local serial connection in conjunction with the People Counter Setup Tool (PCST) software.
Note that for any IP enabled Unit, setup can be either done via IP and an Internet Browser or over a Serial connection as provided by this cable.
The IWC3062 Cable cannot be used to configure the Relay enabled Counters in the 3xxx Series range of Irisys Indoor People Counters, but can be used for all variants (including Relay) of the Outdoor People Counters.
Documentation:
Software:
USB to Serial Adapter Software
IWC3065 Single Port Power Injector (UK)
The IWC3065 Single Port Power Injector allows simple deployment of power over CAT5 on a single channel (one discrete door) in order to provide power to the IP enabled counters in the Irisys 3xxx Series.
This allows use of a single CAT5 cable from the door/entrance back to the Network Switch without the need for an additional Power Cable.
Note: The IWC3065 is NOT a Power over Ethernet (PoE) compliant device and, in use, will isolate the counter from any undesirable and detrimental PoE voltage levels. It is supplied with a suitable 24V power supply & power lead for the European region.
Documentation:
