Gazelle Series

Gazelle Series – high accuracy, low cost of ownership, privacy protecting people counters.

The Gazelle is the popular range of People Counters from Irisys, the world’s largest supplier of retail analytics platforms. With the addition of Bluetooth setup capability, wider field of view 90° lens, a new sensor array and networking options, the Gazelle is a flexible hardware solution that can guarantee the fidelity of data that end users demand, and the right to anonymity of those being counted. The Gazelle series has variants to suit virtually any retail environment or infrastructure, and is packed with new innovations to make it the most desirable People Counter on the market today.

IRC5706-MW Gazelle IP Master Core 60° People Counter

The Irisys IRC5706-MW Gazelle IP Master Core 60° People Counter is one of the Irisys thermal array based People Counter family with IP connectivity. The Gazelle robust and secure, high-performance IP capability allows remote configuration and data collection over IP infrastructure, either over an in-store LAN, or for worldwide access from remote locations over the internet.

IRC5716-MW Irisys Gazelle DualView Master Core 60° People Counter

The IRC5716-MW Irisys Gazelle DualView Master Core 60° People Counter is one of the Irisys thermal array based People Counter family with IP connectivity. The Gazelle robust and secure, high-performance IP capability allows remote configuration and data collection over IP infrastructure, either over an in-store LAN, or for worldwide access from remote locations over the internet.

IRC5206-MW Gazelle Relay Master Core 60° People Counter

The Irisys IRC5206-MW Gazelle Relay Master Core 60° People Counter is one of the Irisys thermal array based People Counter family with Relay connectivity. This Gazelle relay variant replaces the previous generation IRC3020 unit but also adds two relay inputs for integrating with other sensor technology if required.

IRC5106-NW Gazelle Node Core 60°

The Irisys IRC5106-NW Gazelle Node Core 60° is for use with Gazelle Master Counters in Wide Door Opening Networks.

IRC5739-MW Irisys Gazelle DualView Master Core 90° People Counter

The IRC5739-MW Irisys Gazelle DualView Master Core 90° People Counter is one of the Irisys thermal array based People Counter family with IP connectivity. The Gazelle robust and secure, high-performance IP capability allows remote configuration and data collection over IP infrastructure, either over an in-store LAN, or for worldwide access from remote locations over the internet.

IRC5729-MW Irisys Gazelle Master Core 90° People Counter

The IRC5729-MW Irisys Gazelle Master Core 90° People Counter is one of the Irisys thermal array based People Counter family with IP connectivity. The Gazelle robust and secure, high-performance IP capability allows remote configuration and data collection over IP infrastructure, either over an in-store LAN, or for worldwide access from remote locations over the internet.

IRC5229-MW Gazelle Relay Master Core 90° People Counter

The Irisys IRC5229-MW Gazelle Relay Master Core 90° People Counter is one of the Irisys thermal array based People Counter family with Relay connectivity. This Gazelle relay variant replaces the previous generation IRC3020 unit but also adds two relay inputs for integrating with other sensor technology if required.

The Irisys IRC5129-NW Gazelle Node Core 90° People Counter

The Irisys IRC5129-NW Gazelle Node Core 90° People Counter is for use with Gazelle Master Counters in Wide Door Opening Networks

IRC5714-MW Gazelle DualView Master Core 40°

The Irisys IRC5714-MW Gazelle DualView Master Core 40° People Counter is one of the Irisys thermal array based People Counter family with IP connectivity. The Gazelle robust and secure, high-performance IP capability allows remote configuration and data collection over IP infrastructure, either over an in-store LAN, or for worldwide access from remote locations over the internet.

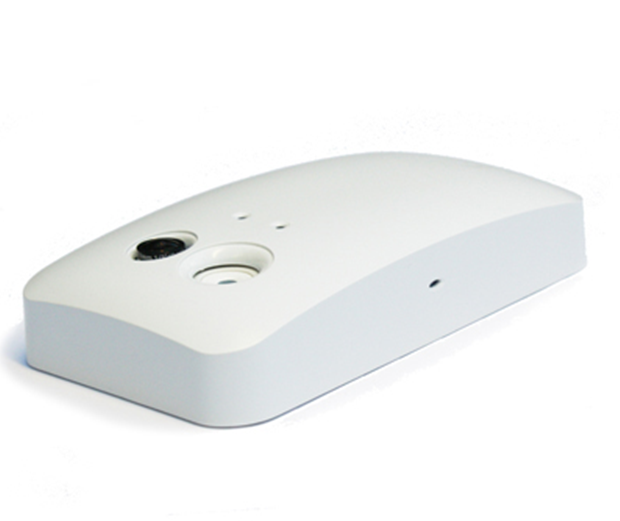

The Gazelle DualView device also features a video camera within the housing. The video camera is capable of viewing a ‘3 counter wide’ area on the floor, with one video equipped unit providing coverage for up to three thermal only units.

IRC5704-MW Gazelle IP Master Core 40°

The Irisys IRC5704-MW Gazelle IP Master Core 40° People Counter is one of the Irisys thermal array based People Counter family with IP connectivity. The Gazelle robust and secure, high-performance IP capability allows remote configuration and data collection over IP infrastructure, either over an in-store LAN, or for worldwide access from remote locations over the internet.

IRC5204-MW Gazelle Relay Master Core 40° People Counter

The Irisys IRC5204-MW Gazelle Relay Master Core 40° People Counter is one of the Irisys thermal array based People Counter family with Relay connectivity. The Gazelle relay variant replaces the previous generation IRC3021 unit but also adds two relay inputs for integrating with other sensor technology if required.

IRC5104-NW Gazelle Node Core 40°

The Irisys IRC5104-NW Gazelle Node Core 40° is for use with Gazelle 2 Master Counters in Wide Door Opening Networks
