If it is not possible to achieve the desired frame frame rate, the Acquisition Statistics can be checked to see where
frames are lost.

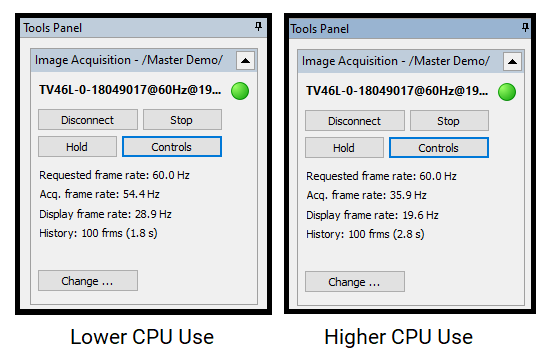

You may see behaviour as bellow depending PC activity
Special Note: Display Frame Rate never exceeds 30Hz

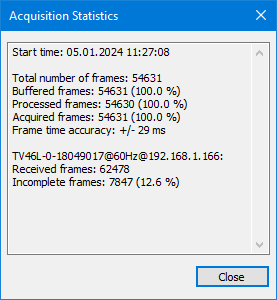

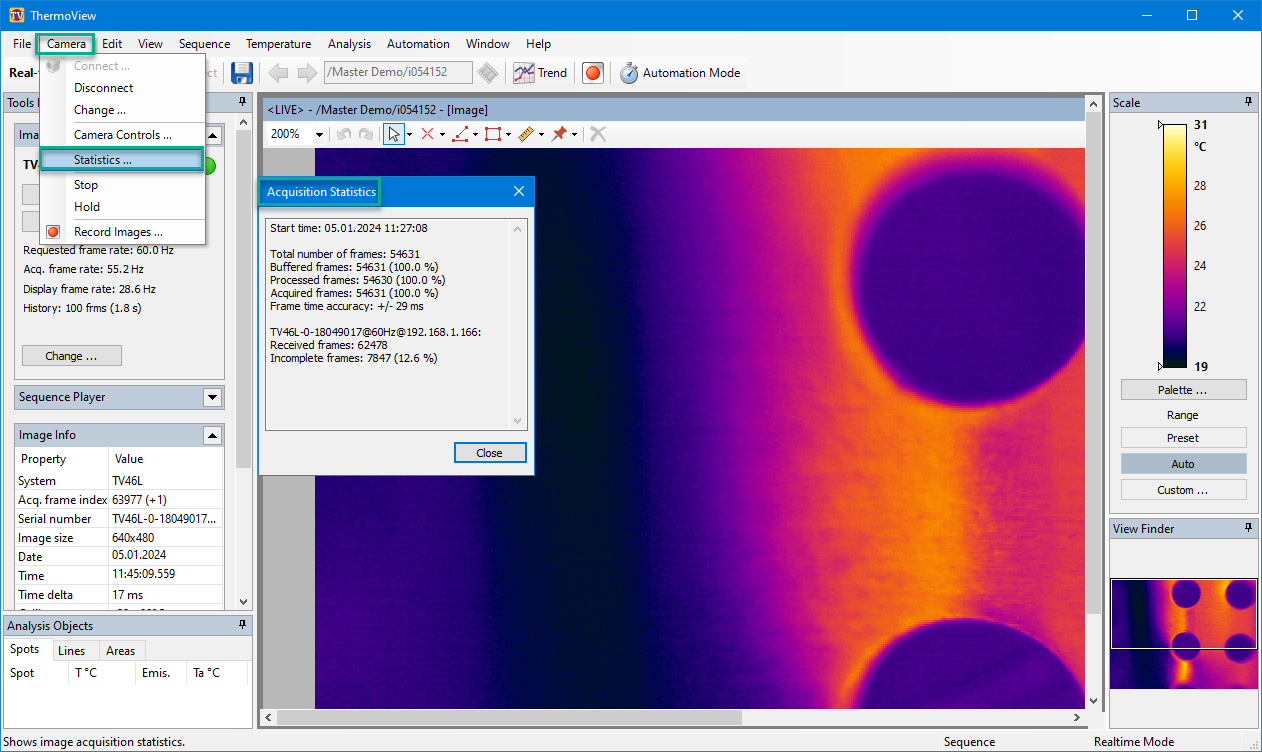

Navigate to Acquisition Statistics
Total number of frames: number of frames counted by camera driver (in case of multiple cameras
used - number of composite frames). Frames dropped by camera driver (e.g. incomplete frames)
are not counted.
Buffered frames: frames put to the processing buffer (value in brackets - relative to the total number
of frames).
Processed frames: number of frames checked for alarms in case automation mode is running,
otherwise same as buffered frames (value in brackets - relative to the total number of frames).
Acquired frames: number of frames put to the the history buffer and available for analysis (also
trends), display and recording. Value in brackets is the portion of acquired frames comparing to the
total number of frames. Acquisition frame rate displayed in the camera status window is measured
by this number.
Then you can see acquisition statistics for each camera individually:
Received frames: number of frames counted by the camera driver (incomplete frames are not
counted).
Incomplete frames: number of frames dropped by the camera driver because data was partly lost
(corrupted) during transportation.
Interpretation
IR image frames are received from the camera (total number of frames), then put to the processing
buffer (buffered frames), then checked for alarms if automation mode is running (processed frames)
and finally analyzed and put to the history buffer where they are available for further handling -
display, recording, etc. (acquired frames). Frames analysis includes on-image objects, diagrams,
trends and is running after processing, in a lower-priority thread.
Knowing this, we can make the following interpretation of acquisition statistics:
Number of buffered frames is less than 100%: calculation needed to process each frame (check for
alarms) is too time consuming; CPU is not fast enough. ThermoView sees this and automatically
drops some frames at the buffering stage as they won't be handled anyway.
Number of processed frames is less than 100%: CPU is not fast enough to process (check for
alarms) all frames. Solution: reduce frame rate; make alarms checks less computationally
expensive (use smaller analysis objects, do not use averaging and other filters).
Number of acquired frames is less than 100%: CPU is not fast enough to analyze and display
analysis results. Solution: reduce frame rate; use smaller analysis objects; do not use averaging
and other filters; close unneeded diagrams and trends.
Number of acquired frames is less than 100%: CPU is not fast enough to analyze and display
analysis results. Solution: reduce frame rate; use smaller analysis objects; do not use averaging
and other filters; close unneeded diagrams and trends.
