All connectors are 3.81mm pitch

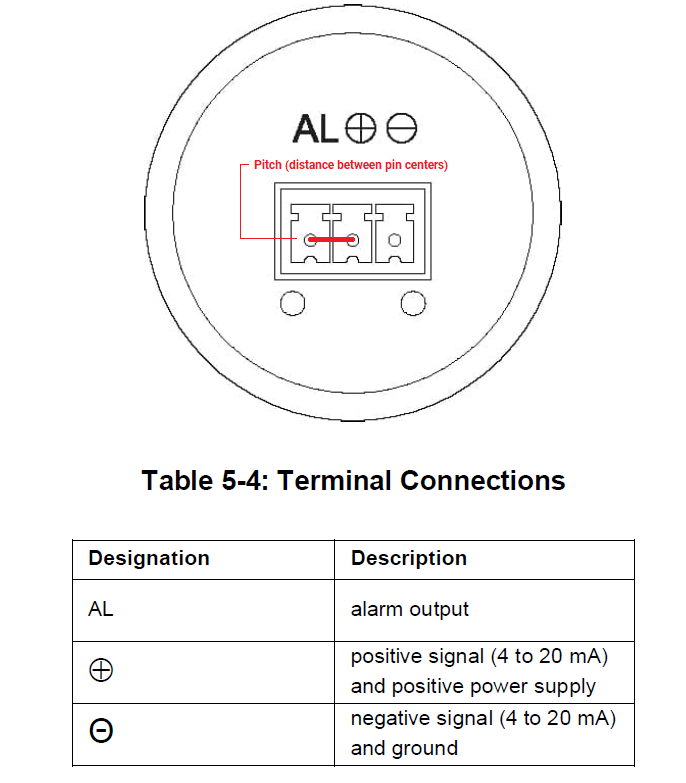

3 wire connector

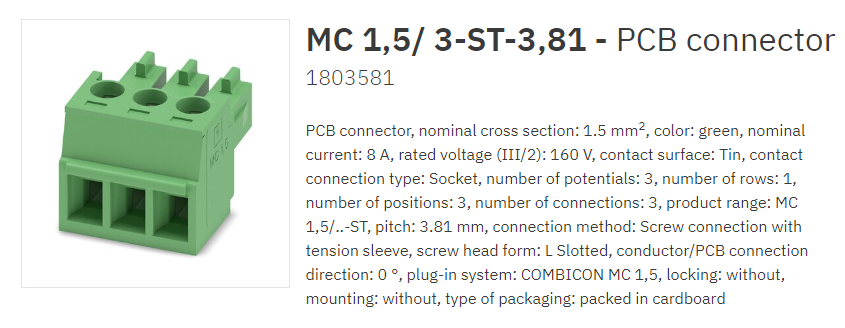

MC 1,5/ 3-ST-3,81 - PCB connector
1803581

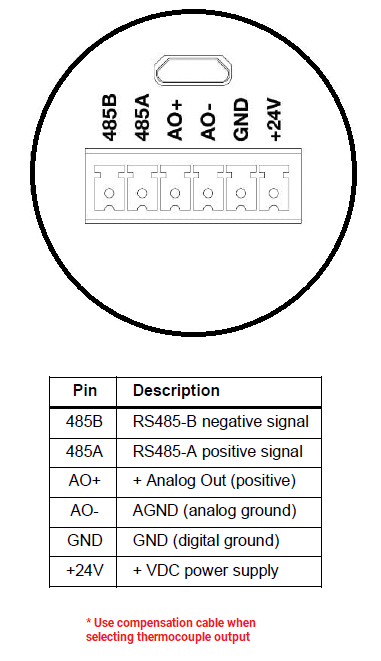

6 wire connector

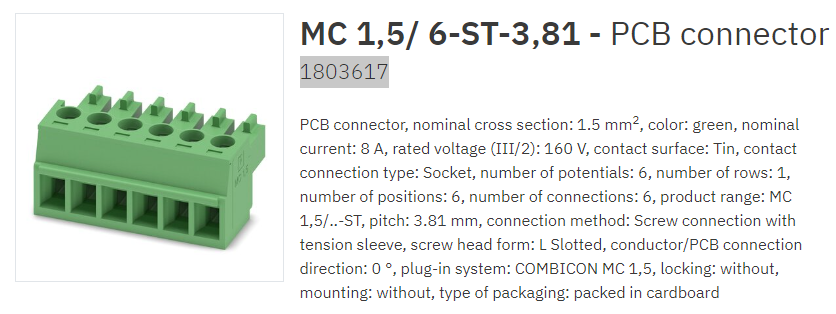

MC 1,5/ 6-ST-3,81 - PCB connector
1803617

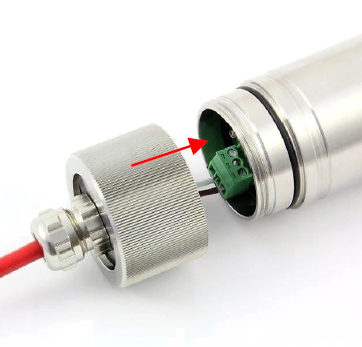

Thermalert T4.0 Cable Terminal Connectors Print
Modified on: Mon, 30 Oct, 2023 at 5:36 PM
