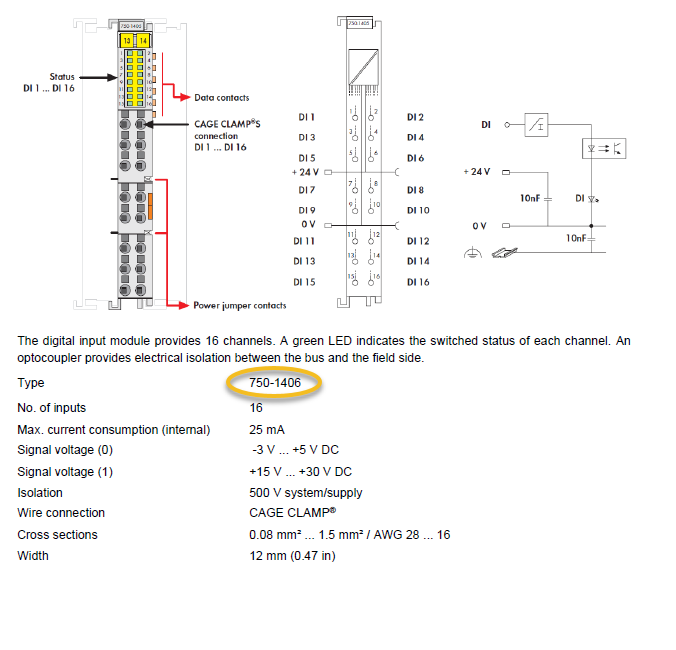

A Wago digital input module 750-1406:
Can be utilized for multiple functions:
Start/stop of scanning
Start/Stop of Stream file recording
Triggering a standard 500 lines snapshot (different to TF and GS trigger mode
Special Note

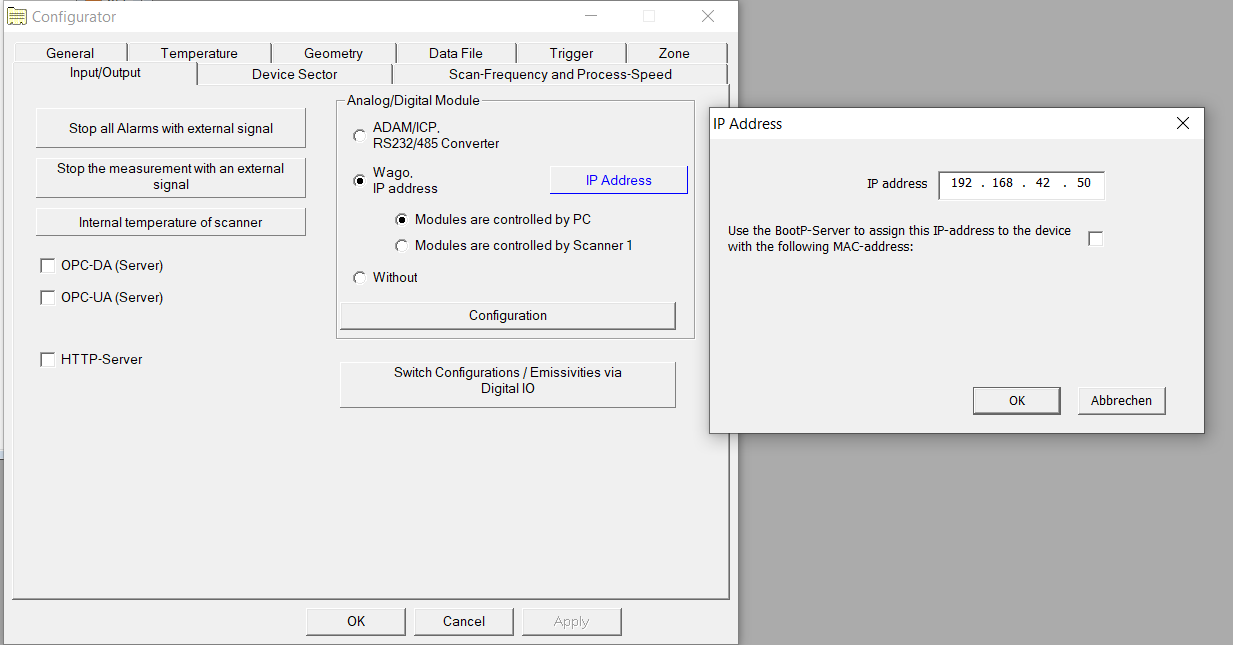

Wago Kit needs to be added in Configurator (via Static IP or via BootP) :

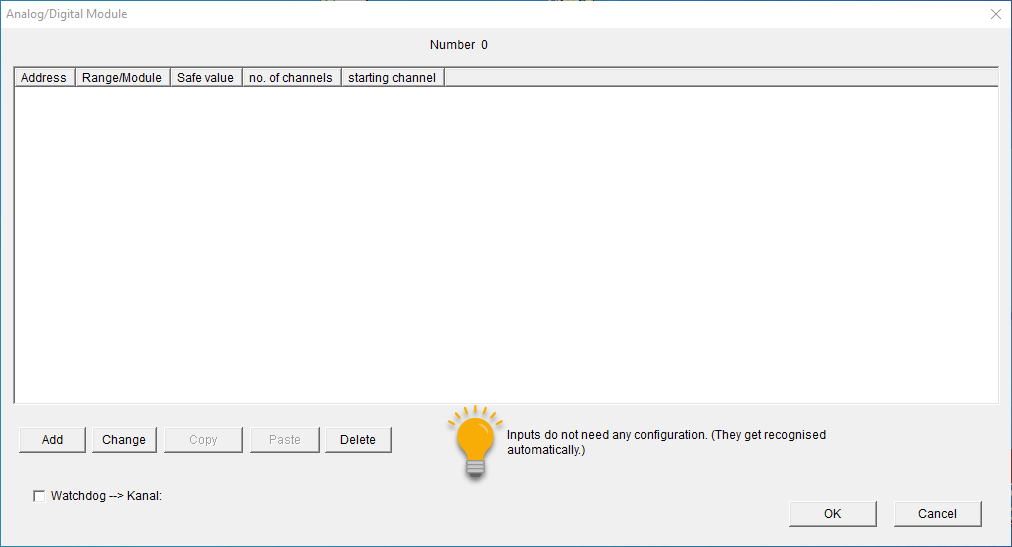

The input module does not need to be configured:
Start/Stop of Scanning - via Wago (every linescanner in a single system can be assigned a digital input, or use the same input to start and stop all).
Start/Stop of Scanning - via Legacy Raytek brand alarm module (discontinued)

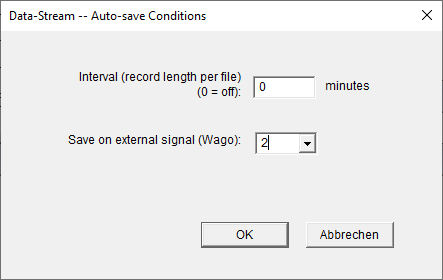

Start/Stop of Stream file recording (each linescanner scroll view can have an individual input channel or use the same channel to start and stop all) - Via Right Click Scroll View - Data-Stream -- Auto-save Conditions

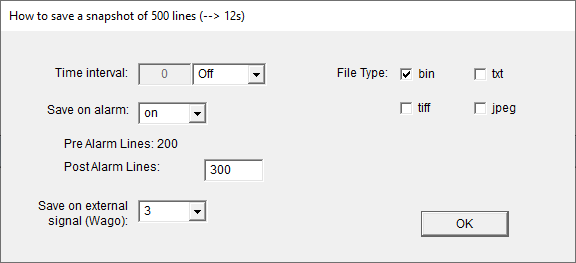

Start of 500 lines snapshot (each linescanner scroll view can have an individual input channel or use the same channel to start and stop all) - Via Right Click Scroll View - Auto-save Conditions
