Material: Aluminium and Zinc Sulphide (window)
Compatible with RSE300

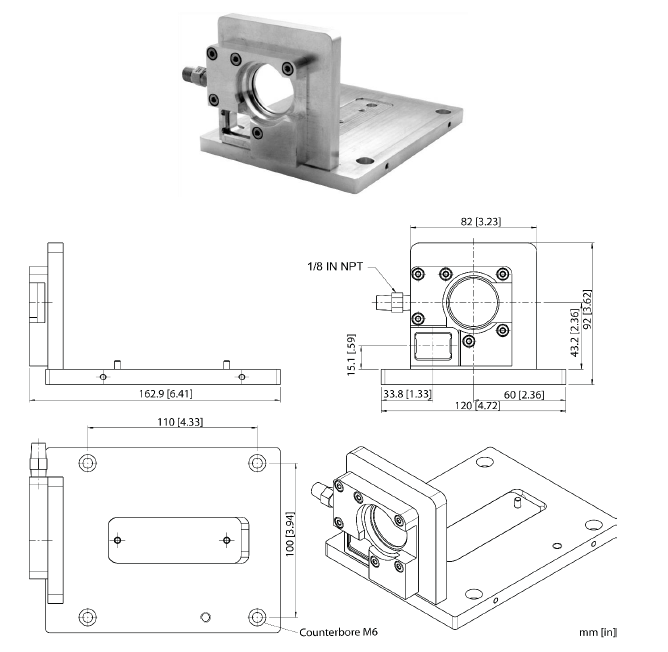

The Air Purge Collar (A-TV-AP) is used to keep dust, moisture, airborne particles, and vapors away from the lens. Air flows into the 1/8” NPT fitting and out the front aperture. Clean filtered (or “instrument”) air is recommended to avoid contaminants from settling on the lens. Do not use chilled air below 10°C (50°F).
Air flow rate: 30 to 60 l / min (8 to 16 gallon / minute)
Air pressure: max. 5 bar (72.5 psi)
Further information and STEP files Click Here
