All Mi3 heads (except some specials) have end test performance data embedded in them at the point of final verfication during the automated manufacturing calibration process.
The data is easy to extract and print and is provides useful confirmation of performance without need to specify an additional calibration certificate (unless you need a fully traceable document).
You will need to run and install DTMD v5.4.1 and ensure that the VCOM USB driver is installed
The software download page can be found here See Article
The procedure is as follows

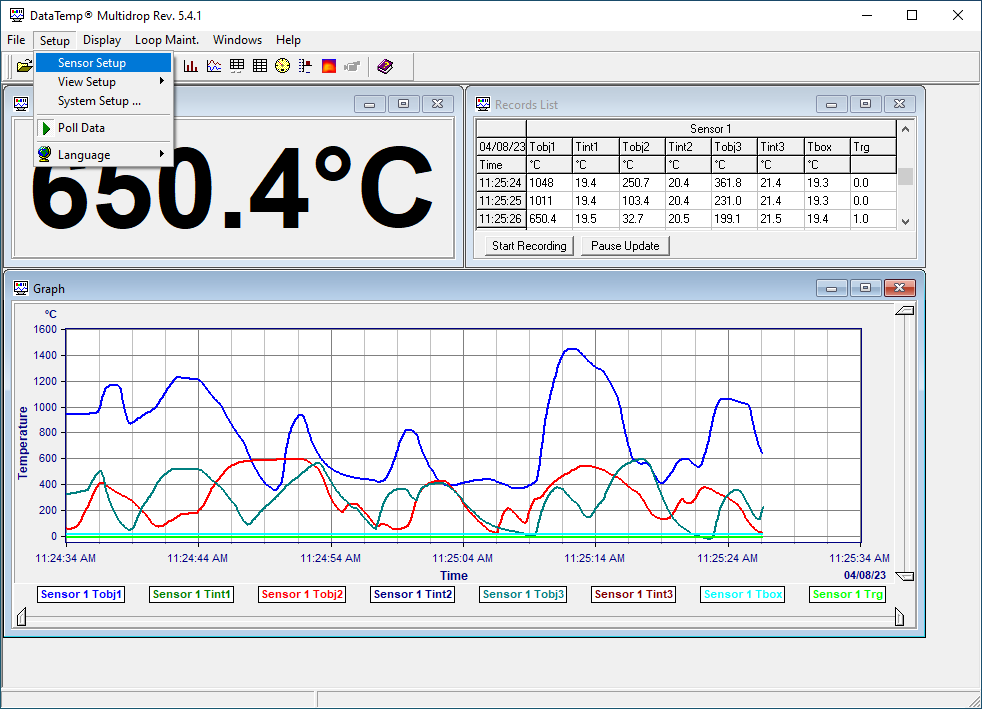

1. Click on Sensor Setup from the Setup tab
2. In the Sensor Heads tab, ensure that you have the correct head selected - in the example we select Head 1 out of 3 heads
3. Click on Print Final Test Report

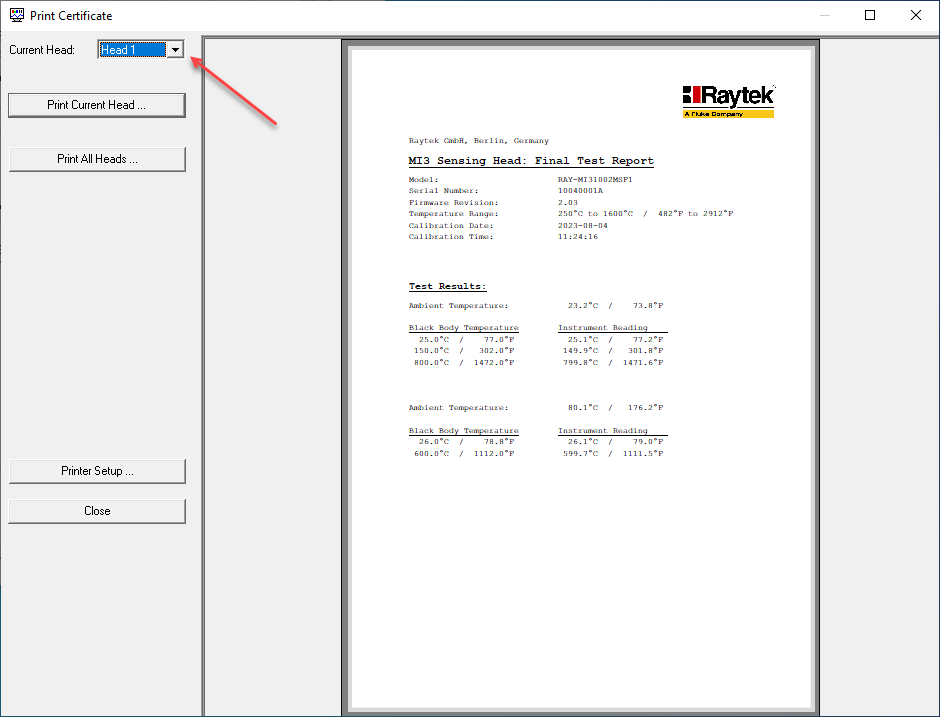

4. You can view the test data and or print the test report. In this interface you can also select other head data to view (if connected)
