Available only for Endurance - all models
The analog output can be calibrated separately to the calibration of the object temperature.
You may can check and adjust the analog output if your control system has a different reading to the sensor (display) or software value.
Analog output calibration should be performed before temperature calibration.
In addition, the sensor can drive a fixed value of output signal - which is useful for checking your control system input channels
Procedure

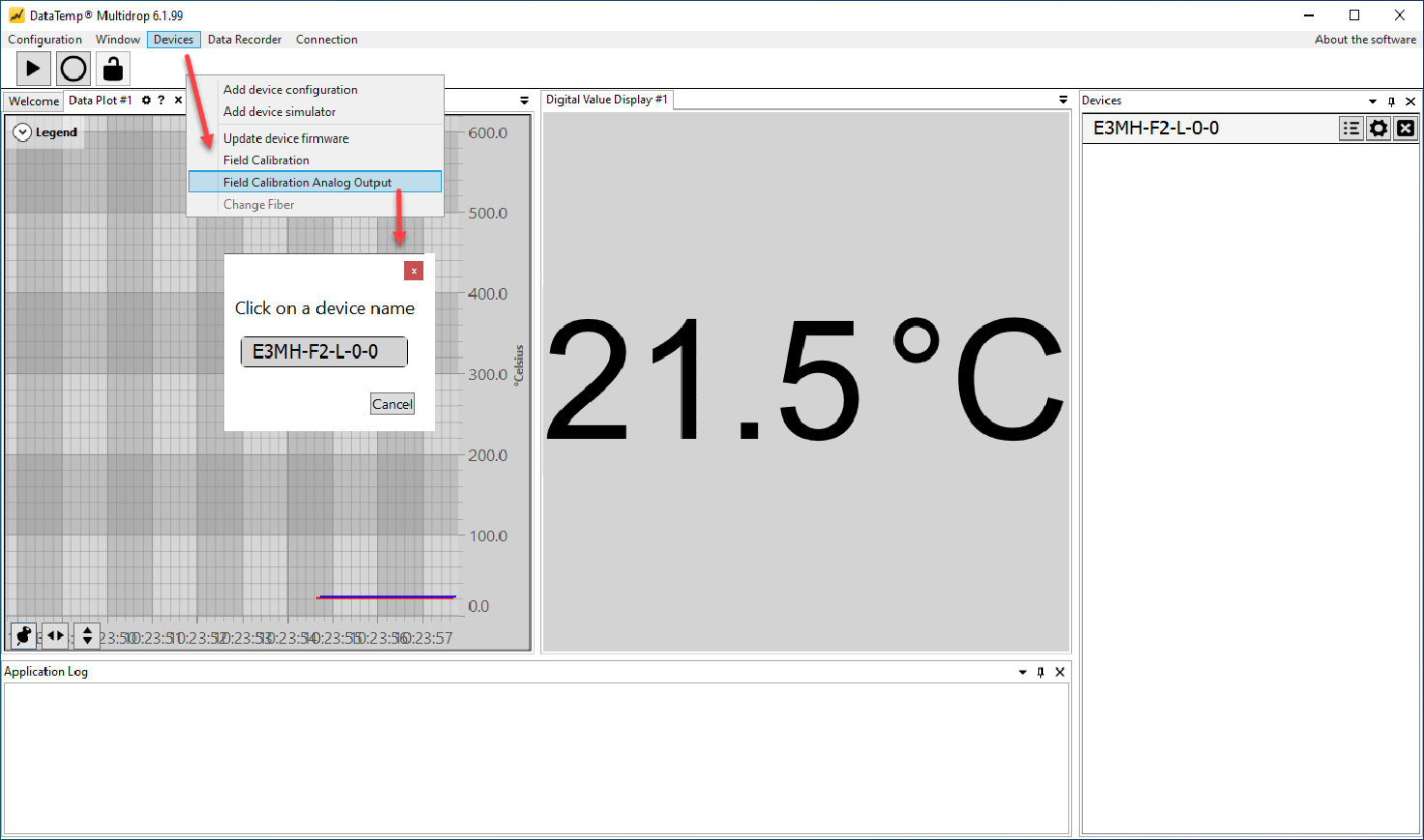

From the Devices tab choose Field Calibration Analog Output
Choose the sensor via Click on a device name
The following dialogue is opened
Based on your DMM reading- type in known value under measuring site 1 Point. In this example, the measured valie is 4.069 mA
Based on your DMM reading- type in known value under measuring site 2 Point. In this example, the measured value is 19.8mA.
Click Reset to user settings. The software will define the correct Offset and Gain values.
