Preparation of Thermoview for data retention and for shelf-spare PC activation Print

Modified on: Wed, 27 Apr, 2022 at 3:18 PM

Determine a storage directory (can be the local camera PC or a network-connected repository). The default location for project files is C:\ProgramData\Fluke Process Instruments\ThermoView. A network connected repository is preferrable as it saves the need to transfer backed up files onto the new/spare pc.

Save the running Acquisition Project to the directory

[Menu->File->Acquisition Project->Save As]

Save the running Collection File to the directory

[Menu Analysis->Save Collection]

If Image Recording feature is “enabled”, enter directory pathway as the storage location

[Menu->Automation->Automation Mode->Image Recorder]

If Trend Recording feature is “enabled”, enter directory pathway as the storage location

[Menu->Automation->Automation Mode->Trend Recorder]

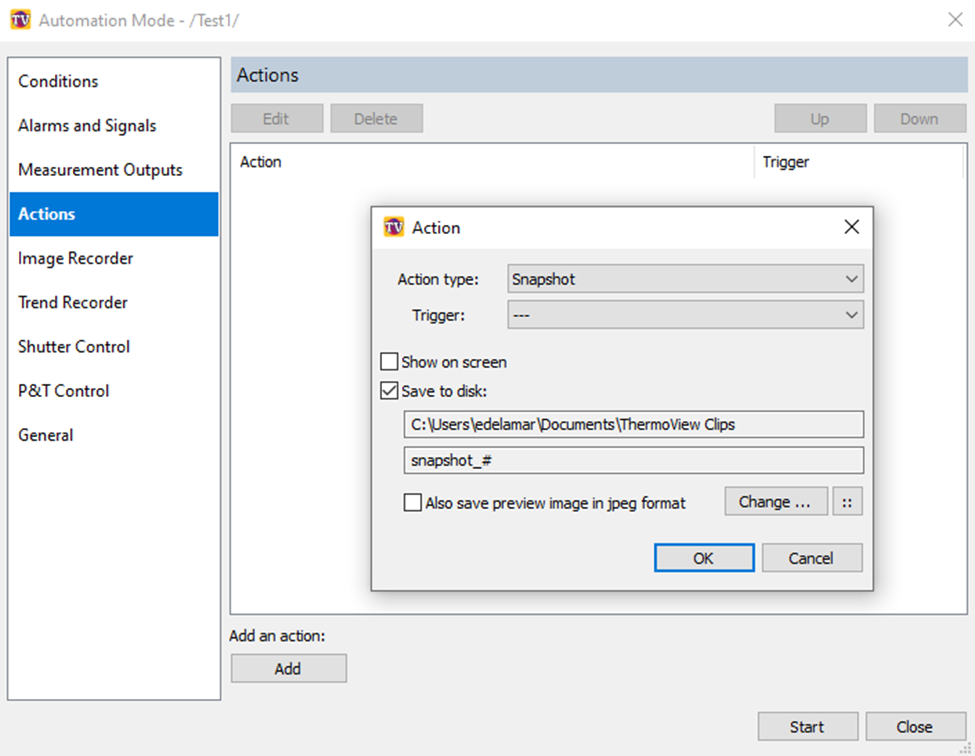

Save project Actions to the directory as Thermoview clips and/or JPEGs

[Menu->Automation->Automation Mode->Actions]

*Note* Action type “Snapshot” should be selected
