Automation Mode - Actions

It is possible to create conditions for multiple snapshot saving. For example, when you want to create a snapshot based on an alarm but also save a snapshot on a regular basis. It is also only possible to save to .jpg format  in addition to .irs format. Image Recorder does not allow for .jpg saving.

It is only possible to create multiple "save-to" locations via Actions in Automation mode.

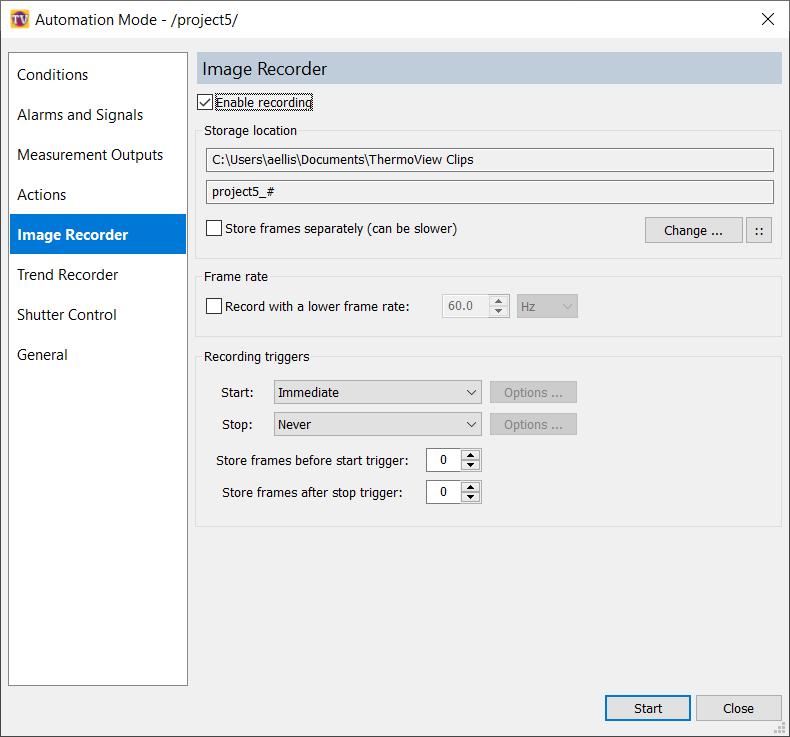

Using Image Recorder, you can only choose a single location.

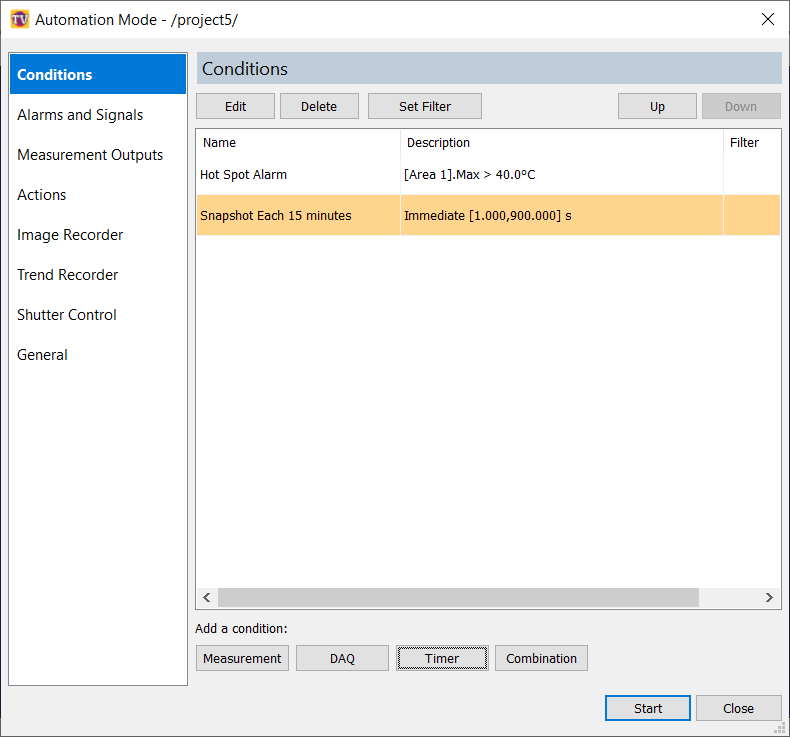

Step 1 - create unique Conditions for each snapshot you want to save. In the example below 2 conditions are defined based on temperatures above 40 deg C and also 1 snapshot every 15 minutes (900s):

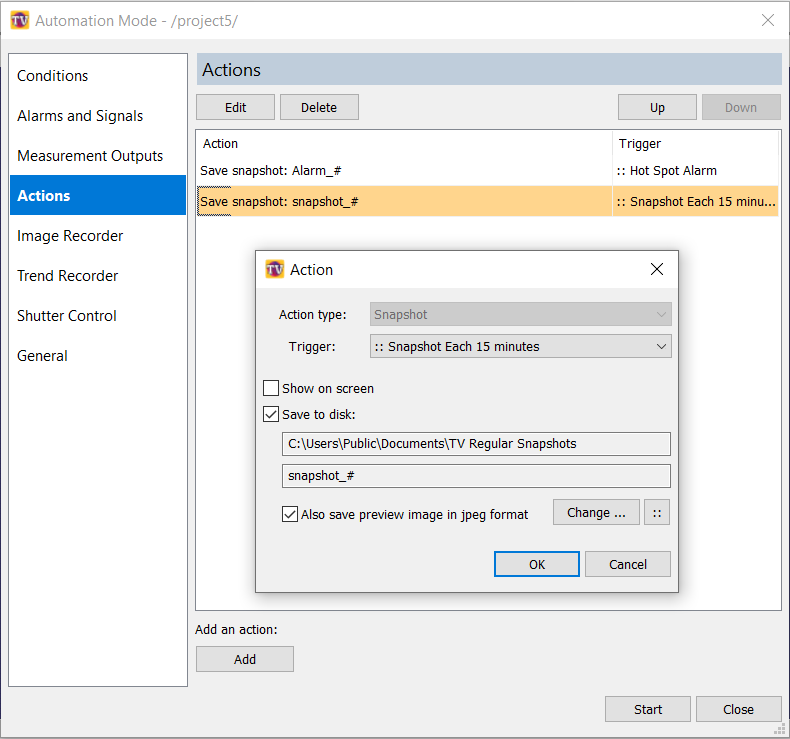

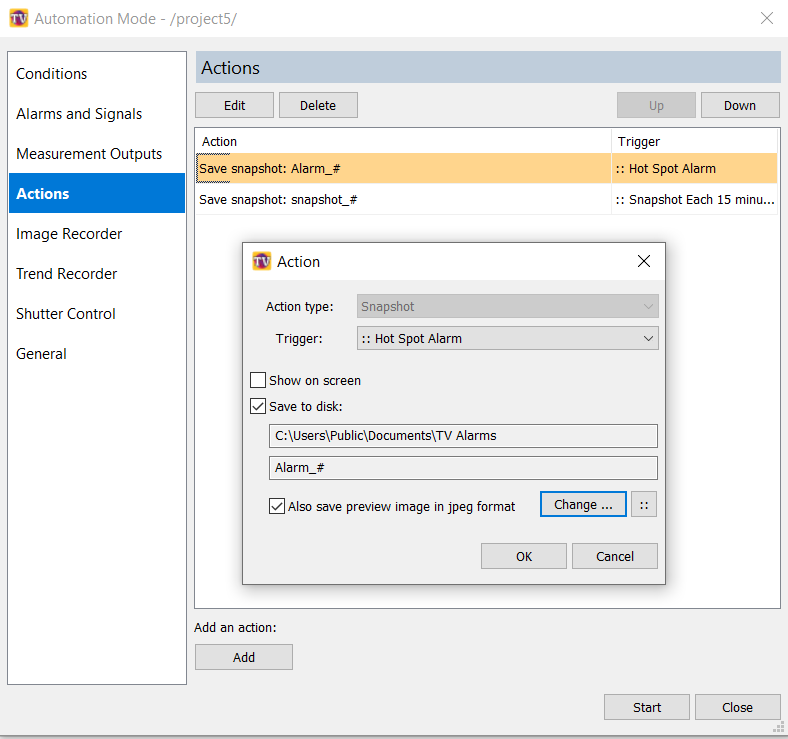

Step 2 - define snapshot creating in Actions with unique save-to locations:

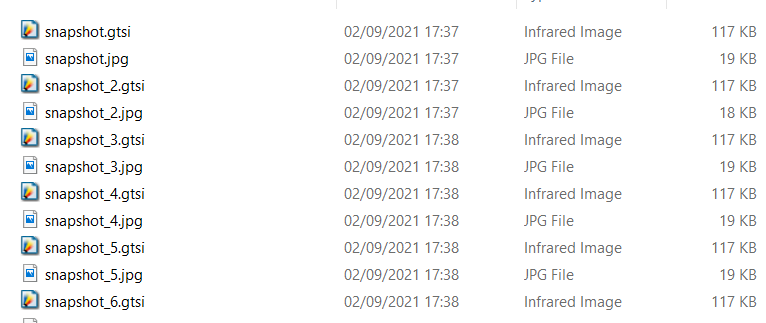

Note: Ensure to check Also save preview image in jpeg format for saving to both formats:
