Starting with v 6.1.5, .mdd files have the option to upload a text file containing sensor settings.

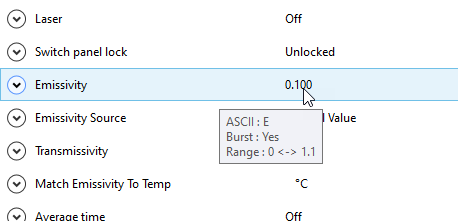

ASCII codes can be found in each manual or by hovering the mouse pointer over the parameter:

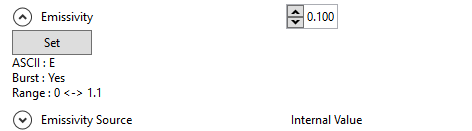

Or by using the parameter drop down:
Create a list of the required parameters and values according to the Legal Values in the manual. If sending an integer it's not necessary change it to add decimal points (1 doesn't need to be changed to 1.00)
This example turns off the laser, changes the emissivity to 1, the average time to 10s and the transmissivity to 1
A short downloadable video is included for download.
The uploaded settings can will be refreshed on the screen and a new .mdd file with supplemental .txt file can be downloaded for archive.
