E-M5PKMC Modline 5 Cable Replacement and Endurance Cable Adapter Print

Modified on: Fri, 8 Jul, 2022 at 3:18 PM

Modline 5 cables maybe are not available anymore. However, an adapter is available for use with the Endurance/Marathon Cable

Solution:

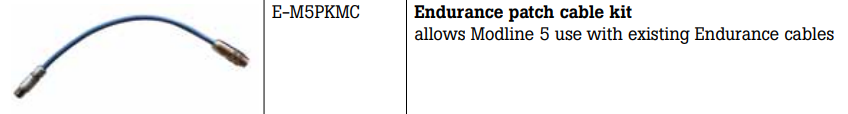

Use the E-M5PKMC which adapts an Endurance/Marathon 12 pin cable to the Modline 5 sensor connection.

Using the Endurance cable you can follow the color coded cable back to decode which are the RS485 lines (black & white)
