Temperature values are not correct and/or the image is noisy? What can I do?

Please check that the NUC shutter is set to Automatic and/or initiate shutter manually See Article


Can I use the PoE adapter from the Endurance sensor?

No. Further information can be found here: PoE Comparison


Are LabView or Matlab SDK available for TV40?

No, but we have seen general compatibility with the Fluke RSE300 toolkits, available at https://www.fluke.com/en-gb/product/thermal-imaging-cameras/rse300


Is it possible to receive support if we want to try these SDK's

No, they are not officially supported for TV40, they are available to try and functionaility cannot be guaranteed.


What is the Exposure / Integration time of TV40 camera?

Exposure time is how quickly an IR camera can capture a single frame of data, which is similar to shutter speed on a traditional visible light camera. The exposure time for IR cameras is referred to as Integration Time, or the detector's Thermal Time Constant.

For TV 40, the exposure / integration time is 12 msec.


Can multiple cameras connect to a pc via a network switch.

Yes, see article: https://fluke.freshdesk.com/en/support/solutions/articles/19000117601-tv40-networking


Are there recomendations to the type of multi port card that should be used?

We have good results testing an Intel I350T4 "Ethernet Server Adapter"


Are there PCI cards that have PoE ports?

Yes, these are available (2 examples below, not specifically tested):

Adlink GIE72/74 Dual or Quad port Card

Adlink GIE64 Quad Port Card(PCIx x4 4 ports)

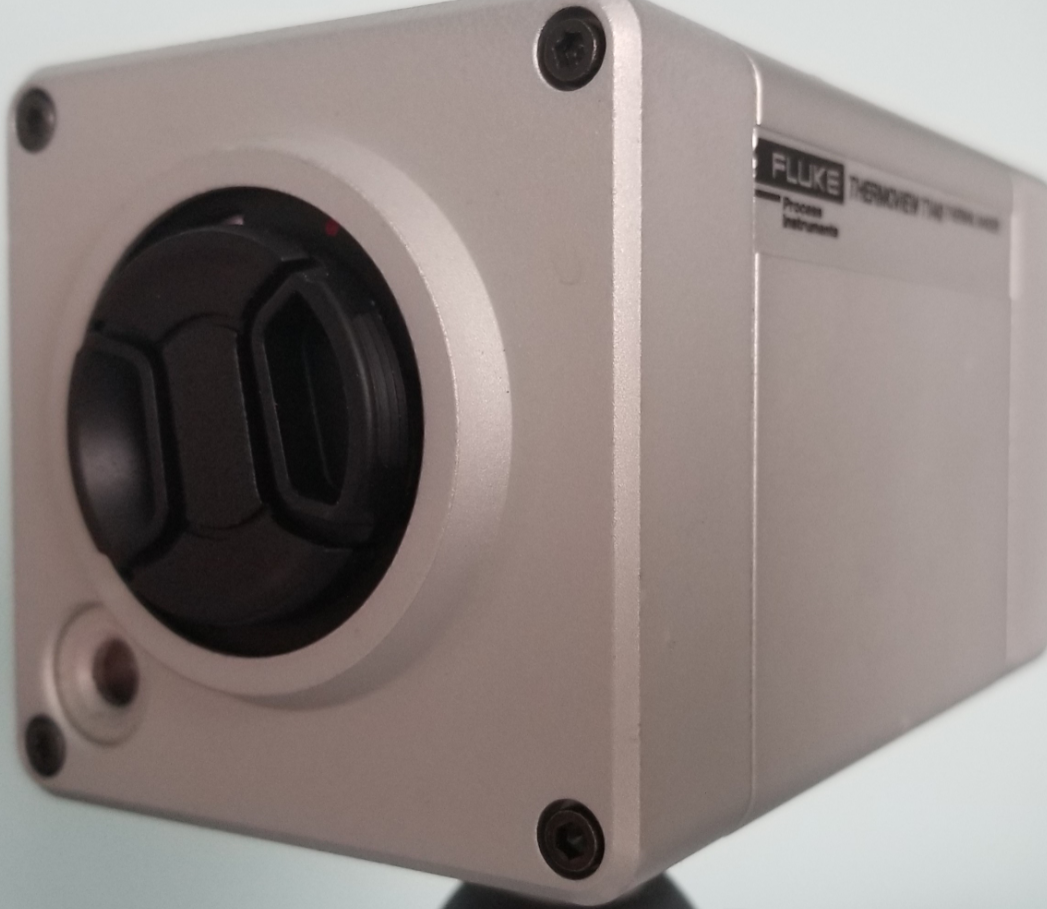

Is there a clip on lens cap for the Thermoview camera?

Available from online sellers "37mm centre pinch and grip" lens cap. Others may be suitable



For demo purposes can the camera be powered by a battery?

Yes, we have good experience using a lithium car starter battery back. In this case use the 3 pin power port. The MP150 power cable is compatible.


What is the size of the power supply A-PS-DIN-24V?

Width    54 mm / 2.126 inch

Height    89 mm / 3.504 inch

Depth    59 mm / 2.323 inch

Length from upper-edge of DIN-35 rail    55 mm / 2.165 inch
